- S. A. Armstrong Limited

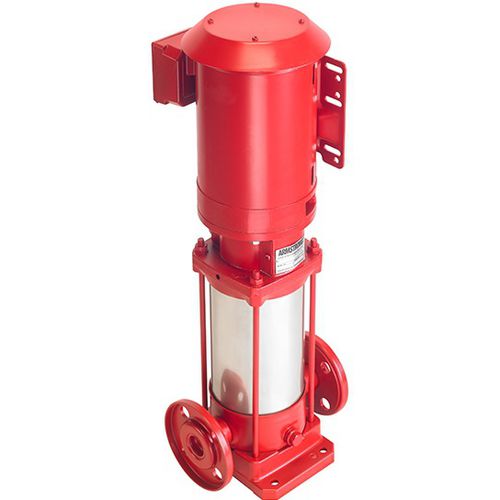

Water pump 4700 seriescondensateelectricimpeller
Add to favorites
Compare this product
Characteristics
- Fluid
- water, condensate
- Operation
- electric
- Technology
- impeller
- Domain
- industrial
- Applications
- recovery
- Material
- stainless steel
- Other characteristics
- multi-stage, high-efficiency, dry, mechanical, seal, floating, vertical
- Flow
25 l/s
(6.6043 us gal/s)- Head
275 m
(902'02" )- Power
Max.: 37 kW
(50.31 hp)Min.: 0.37 kW
(0.5 hp)
Description
ApplicationsDomestic water pressure boosting; fire safety ‘jockey’ systems / system pressure upkeep; boiler feed water pumping
DescriptionThe Armstrong 4700 MultiStage Pumps are designed for reliability and low maintenance cost
MaterialsCast iron or stainless steel casing
ConfigurationInside single-spring mechanical seal.
Performance rangeUp to 400 USgpm (25 L/s) flow; up to 900 ft (275 m) head
Temperature250°F (121°C)
Power Range0.5 hp to 50 hp (0.37 kW to 37 kW)
Size1.25" to 4" (38 mm to 100 mm)
