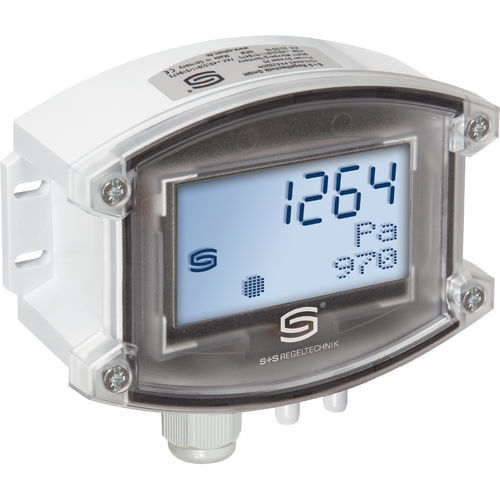

Differential pressure transducer PREMASREG 7111-UW LCD

piezoresistive0-10 V3-wire

The electronic PREMASREG® 711x pressure sensors and switches are equipped with eight switchable measuring ranges, one switching output, one continuous output, and a display for setting the switchpoint and showing the actual pressure (eight devices in one, plus differential pressure switch / differential pressure monitor, continuous pressure sensor in a single device). The sensor device has a housing made of impact resistant plastic, with cable gland or M12 connector according to DIN EN 61076-2-101 and with metal pressure port nozzles (quick connect optional). It is used to measure positive, negative or differential pressures in clean air, with limit value switching. The piezoresistive measuring element guarantees a high degree of reliability and accuracy. Applications of these sensor devices are found in cleanroom, medical and filter engineering, in ventilation and air conditioning ducts, in spray booths and large-scale catering facilities, in filter monitoring and level measuring or frequency converter triggering. Media measured with these pressure transducers are air (non-precipitating) or other gaseous, non-aggressive, non-combustible media. The pressure sensor device has a button for manual zero-point calibration (automatic zero-point calibration optional) and one offset potentiometer for setting the switching point and one for final value correction. The sensor is factory-calibrated and can be fine-tuned to ambient conditions by an expert. The transmitter is supplied including an ASD-06 connection set (2 m connection hose, two pressure port nipples, screws).
