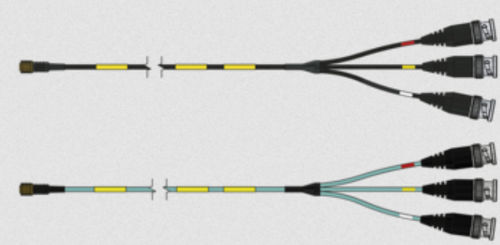

Connection electrical cable

dataBNChigh-temperature

Application/Description
Sensor connection cable for triaxial accelerometers with voltage output (IEPE).

Product benefits

• High-temperature resistant up to +250°C (TPFK)
• Mechanically robust jacket (PUR)
• Extremely flexible (Silicone)

Additional information
Individual marking by heat-shrink sleeve, e.g. internal part number or barcode.

Connectors
Side 1: 1/4-28 UNF female, 4-pin (note: specify sensor type)
Side 2: 3 × BNC male pins

Cable data (TPFK)
Construction: 4 × AWG 34
Insulation: TPFK
Jacket: TPFK
Jacket color: blue
Outer diameter: approx. 2.1 mm
Operating voltage: max. 150 V
Temperature range: -55°C / +250°C

Cable data (PUR)
Construction: 4 × AWG 34
Insulation: TPFK
Jacket: PUR
Jacket color: black
Outer diameter: approx. 2.5 mm
Operating voltage: max. 150 V
Temperature range: -40°C / +90°C (up to +125°C for 2500 h)

Cable data (Silicone)
Construction: 4 × AWG 30
Insulation: TPFK
Jacket: Besilen (silicone)
Jacket color: turquoise
Outer diameter: approx. 2.7 mm
Operating voltage: max. 150 V

Configuration examples
S3031-1030-00600 | Jacket: TPFK | Length: 6000 mm
S3032-1030-00600 | Jacket: PUR | Length: 6000 mm
S3033-1030-00600 | Jacket: Silicone | Length: 6000 mm

Downloads
Datasheet for connection cable (product datasheet, PDF available).

Technical specifications

• Product type: sensor connection cable for triaxial accelerometers (IEPE)
• Connectors: 1/4-28 UNF female (4-pin) and 3 × BNC male pins
• Conductor construction: variants with 4 × AWG 34 or 4 × AWG 30
• Insulation material: TPFK
• Jacket materials: TPFK, PUR, Besilen (silicone)
• Jacket colors: blue (TPFK), black (PUR), turquoise (Silicone)
• Outer diameter: approx. 2.1 mm (TPFK), approx. 2.5 mm (PUR), approx. 2.7 mm (Silicone)
• Operating voltage: max. 150 V
• Temperature ranges: TPFK: -55°C to +250°C; PUR: -40°C to +90°C (up to +125°C for 2500 h); Silicone: high flexibility (temperature data as per TPFK/PUR depending on design)
• Available lengths in examples: 6000 mm
• Part number examples: S3031-1030-00600 (TPFK), S3032-1030-00600 (PUR), S3033-1030-00600 (Silicone)
• Datasheet: product datasheet (PDF)
