The 8-channel IEPE triax multicore cable provides a structured and space-saving connection for multi-channel NVH and vibration measurements with triaxial accelerometers. Multiple signal paths are combined within a single multicore assembly and each measurement channel is mapped to three BNC connectors, enabling clear routing of triax signals to the measurement system. Up to eight triaxial sensors can be connected efficiently. The IEPE triax conductor design combined with a PUR inner and outer jacket ensures mechanical stability and flexible handling. Multi-layer shielding supports reliable signal quality in demanding environments. Typical applications include test benches, vehicle tests and laboratory setups with high channel density. Custom connector configurations, for example ¼-28 UNF sensor sockets, allow precise integration into existing measurement systems.

Product advantages

• mechanically robust
• flexible for routing
• reduced cabling complexity for multi-channel setups
• bundled connection of up to 8 triaxial sensor signals
• custom connector configurations possible

Connectors
Side 1 - ¼-28 UNF socket, 4-pin
Side 2 - 8 × (3× BNC male)

Cable data

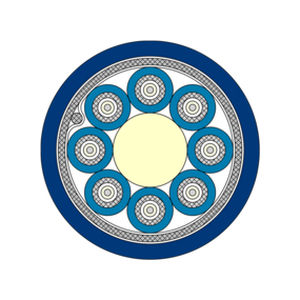

Construction - 8 × (4 × AWG 34)C – IEPE Triax
Insulation - TPFK
Inner jacket - PUR
Outer jacket - PUR
Jacket color - dark blue
Overall diameter - approx. 11.7 mm
Operating voltage - max. 150 V
Temperature range - -40°C to +90°C (short-term +125°C, 2500 h)

Configuration example
Item No. S3055-1030-00500 | Jacket material: PUR | Length "L": 5000 mm

Downloads

• Data sheet for 8-channel IEPE Triax Multicore Cable (PDF)

Characteristics / Technical specifications

• Product name: 8-channel IEPE Triax Multicore Cable
• Max. number of triaxial sensors: 8
• Connectors: ¼-28 UNF (socket) on one side; 8 × (3× BNC male) on the other side
• Cable construction: 8 × (4 × AWG 34)C – IEPE Triax
• Insulation: TPFK
• Inner and outer jacket: PUR
• Jacket color: dark blue
• Overall diameter: approx. 11.7 mm
• Operating voltage: max. 150 V
• Temperature range: -40°C to +90°C (short-term +125°C, 2500 h)
• Shielding: multi-layer shielding for improved signal quality
• Mechanical properties: robust and flexible for routing
