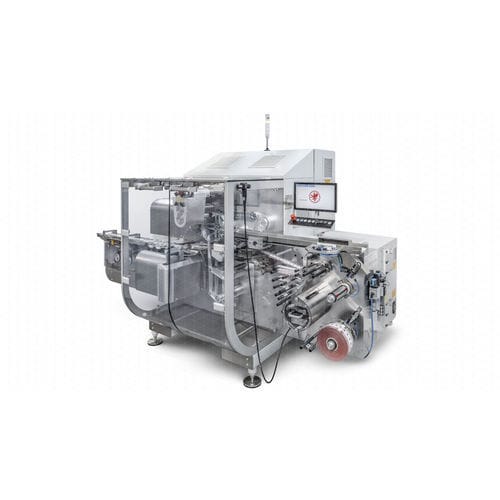

Turntable wrapping machine HY7

automaticfoodfor the food and beverage industry

Overview
HY7 is a hybrid-drive, multi-style wrapping machine designed for flat-base chocolate pralines and similar confectionery. It supports Twist (Side, Top, Double), Envelope, Bunch and Wallet formats with a production capability up to 700 ppm.

Key benefits

• Multi-style flexibility: fast changeover between wrap styles without compromising throughput.
• High productivity: engineered for consistent output up to 700 ppm in production conditions.
• Wide product range: handles small pralines through small bars with per-element adjustments.
• Sanitary design: machine layout and materials conform to demanding hygienic standards for food production.
• Compact & modular: reduced footprint and modular architecture for easy line integration and reconfiguration.
• Predictive maintenance: real-time diagnostics and parameter monitoring to optimize uptime and lifecycle.
• Cost-efficient lifecycle: designed to minimize TCO and maximize MTBF.

Hybrid drive concept
HY7 combines electronic control and mechanically optimized subsystems. Key units — feeding belts, pusher, elevator, folding group, twisters and ejector — are servo-driven and fully programmable for repeatability and stable quality. The twisting unit is driven by two servos to allow quick setup of revolution patterns; the folding group uses independently driven folders for element-level adaptation to product shape and film behavior.

Eco-friendly materials
The machine is developed and tested for compatibility with eco-friendly and biobased wrapping films. Laboratory tests conducted with biobased film suppliers and chocolate manufacturers validate handling and processing parameters for sustainable films.

Product media & resources

• Image galleries and technical photos showing wrap styles and machine components.
• Demonstration and editorial videos on hybrid drive concept and operational sequences.

Technical specifications

• Model: HY7
• Supported wrap styles: Side Twist, Top Twist, Double Twist, Envelope, Bunch, Wallet
• Maximum throughput: up to 700 ppm (production dependent)
• Drive: hybrid drive with multiple servo-driven subsystems
• Servo-driven units: feeding belts, pusher, elevator, folding group, twisters, ejector
• Twisting unit: 2 servo motors (programmable revolution patterns)
• Folding group: independently driven folders for per-element adjustment
• Design: sanitary-oriented, compact and modular
• Maintenance: predictive maintenance with real-time diagnostics and parameter setting
• Material compatibility: optimized for eco-friendly / biobased films
• Product range: from small pralines to small bars
• Branding: Carle & Montanari (SACMI Packaging)
