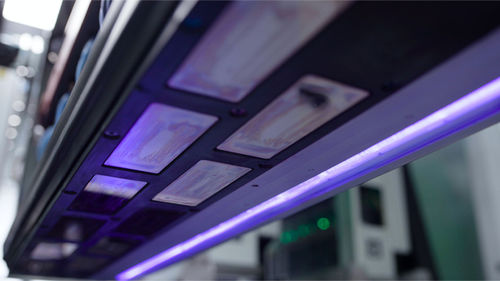

Inkjet printing unit DMD

for integrationdigitalcompact

Overview
Digital inkjet solution for decorating metal packaging. The DMD line is designed for high-throughput, single-pass digital decoration of metal sheets within the indicated size and thickness range.

Advantages

• Instantaneous product changeover for flexible short and long runs
• Real-time product development and sampling performed directly on the production line
• Zero-cost product changeovers — no ink changeover and no printing plates required
• Sustainable operation — reduced installed electrical power, minimal waste and compact footprint (maximum 25 m line length)
• High productivity single-pass architecture: up to 2400 sheets/h
• Unconstrained additional capacity when integrated alongside traditional decoration lines
• Integrated digital application of protective coating, with optional selective coating capability
• Automated line operation that can be managed by a single operator

Color configuration
Modular color configuration options are available for the DMD line; graphical representations of channel and color layouts are provided on the product page.

Technical features (table)
TECHNICAL FEATURES — DMD
Minimum sheet size: 500x700 mm
Maximum sheet size: 1000x1200 mm
Sheet thickness range: 0.12 - 0.50 mm
Production capacity: 2400 sheets/h @ 1000x1200 mm
Maximum line length: 25 m
Printable resolution range: 400 - 600 DPI

Characteristics / Technical specifications

• Minimum sheet size: 500 x 700 mm
• Maximum sheet size: 1000 x 1200 mm
• Sheet thickness: 0.12 - 0.50 mm
• Production capacity: up to 2400 sheets/h at 1000 x 1200 mm
• Maximum installed line length: 25 m
• Printable resolution: 400 - 600 DPI
• Single-pass digital inkjet architecture
• Integrated and optionally selective protective coating application
• Low energy consumption design and minimal waste generation
• Automatic operation manageable by one operator
