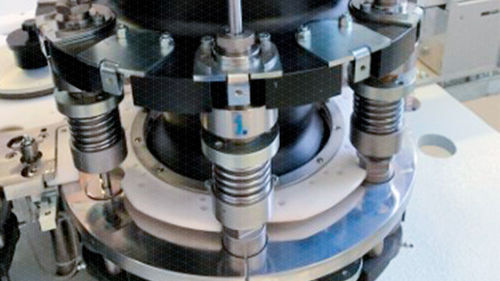

Plastic film folding machine FLM12

electrichigh-speed

Short description
Caps folding system designed to perform folding of “flap” bands in plastic caps after cap formation, ensuring correct engagement with the bottle locking ring.

Overview
Floor-mounted unit for integration into cap production lines. Performs the mechanical folding operation on security/flap bands to prepare caps for the capping phase. Provides throughput and utility consumption data for planning line layout and utilities.

Technical data (table)
nominal max closure diameter | mm | 63
max closure height | mm | 25
output | pz/min | up to 2400
average absorbed power (at max throughput) | kW | 3.5
compressed air consumption (6 bar) | l/min | 230

Characteristics / technical specifications

• Model: FLM12
• Brand: SACMI
• Product type: caps folding system (for “flap” bands in plastic caps)
• Application: folding of flap bands after cap manufacture to ensure compatibility with bottle locking ring
• Nominal max closure diameter: 63 mm
• Max closure height: 25 mm
• Output: up to 2400 pz/min
• Average absorbed power (at max throughput): 3.5 kW
• Compressed air consumption (6 bar): 230 l/min
