In-line slitting machine SCM series

Overview
The tamper-evident band on closures is functionally critical; slitting and folding equipment controls bridge geometry and folding to ensure closure performance and bottling-line efficiency.

Caps slitting system
Bridges can be formed in-mould or produced by a post-mould slitting operation. Adjustable slitting configuration (number and thickness of bridges) lets you tune bridge breaking force and flexibility to meet end-user requirements.

FLM12 - caps folding system
Flap or corrugated bands require a folding operation after cap formation to engage correctly with the bottle locking ring; FLM12 performs this folding at line speed.

Scoring & folding system
Combined scoring and folding units perform both operations in a single step for cost-effective integration. Configurable scoring settings influence bridge strength and capping behaviour.

Technical data (examples)
SCM12 — nominal max closure diameter: 73 mm; max closure height: 25 mm; output: up to 2200 pcs/min; average absorbed power: 3.5 kW; compressed air (6 bar): 230 l/min.
FLM12 — nominal max closure diameter: 63 mm; max closure height: 25 mm; output: up to 2200 pcs/min; average absorbed power: 3.5 kW; compressed air (6 bar): 230 l/min.
SFM12 — nominal max closure diameter: 63 mm; max closure height: 25 mm; output: up to 2200 pcs/min; average absorbed power: 8 kW; compressed air (6 bar): 230 l/min.

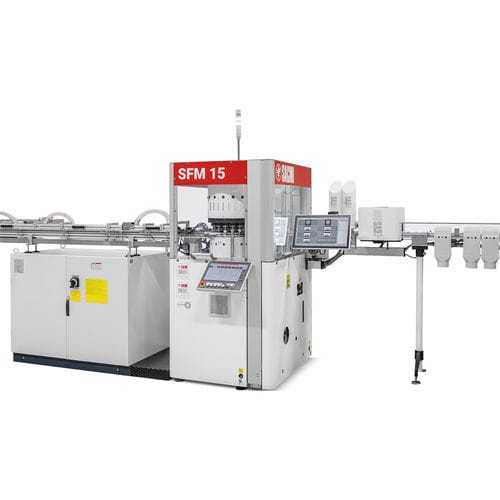

SFM15 — nominal max closure diameter: 43 mm; max closure height: 25 mm; output: up to 3000 pcs/min; average absorbed power: 8 kW; compressed air (6 bar): 230 l/min.

Applications / Function
Machines perform slitting/scoring and folding of tamper-evident and flap/corrugated bands to improve cap-to-bottle engagement and control final bridge strength for reliable capping.

Key features / technical specifications

• Models: SCM12 (slitting), FLM12 (folding), SFM series (scoring & folding: SFM08, SFM12, SFM15).
• Adjustable slitting/scoring configuration: number and thickness of bridges to tune breaking force and flexibility.
• Max closure diameters: SCM12 = 73 mm; FLM12 / SFM12 = 63 mm; SFM15 = 43 mm.
• Max closure height: typically 25 mm.
• Outputs: up to 2200 pcs/min (SCM12, FLM12, SFM12); up to 3000 pcs/min (SFM15).
• Average absorbed power: 3.5 kW (SCM12, FLM12); ~8 kW for some SFM variants.
• Compressed air (6 bar): typically 230 l/min.
