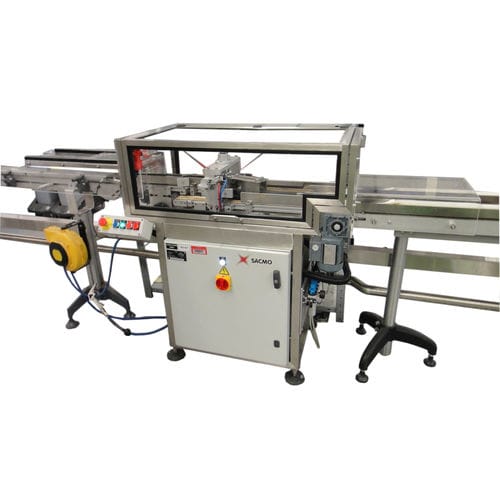

Our solution for tube transfer and accumulation.
Filled tubes comes gently on a motorized conveyor located after a tube filler. A diverter driven by a pneumatic cylinder brings tubes to a double motorized conveyor connected to 2 lanes leading to a horizontal cartoner (alternating or direct).
• Spacing system
• Checking system for presence of tubes in the diverter
• Check of Maxi Tubes at the output of the machine
• SIEMENS PLC
• Electrical cabinet fitted to the frame
• Total access on front side
• Safe system for operator
-Reset action before switching on
• Electrical supply: 400 V, 50 HZ + Neutral
• Absorbed power: 1,5 kW
• Production speed: 80 units per minute
