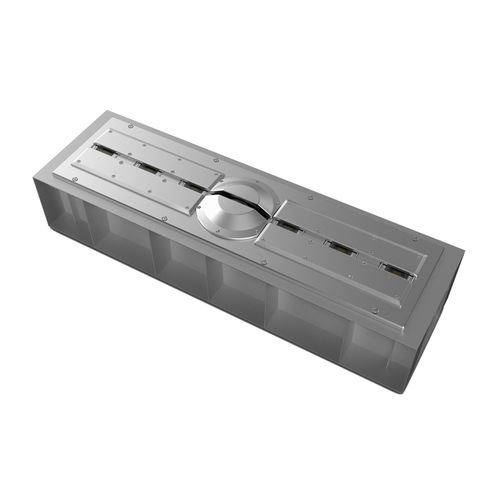

Under-vehicle inspection system SE-UVIS200

CCDscanningcamera

The SE-UVIS200 Fixed Under Vehicle Inspection System (UVIS) enhances security measures by thoroughly inspecting vehicle undercarriages. Equipped with high-resolution cameras and scanning devices, UVIS offers real-time imaging and analysis. It ensures continuous monitoring and enhanced safety. The SE-UVIS200 Fixed Under Vehicle Inspection System (UVIS) enhances security measures by thoroughly inspecting vehicle undercarriages. Equipped with high-resolution cameras and scanning devices, UVIS offers real-time imaging and analysis. It ensures continuous monitoring and enhanced safety. Overall, the Portable Under Vehicle Inspection System enhances safety and security measures in airports, border crossings, military checkpoints, government facilities, and public events. GENERAL SPECIFICATIONS • Type: Fixed • Field of View: 180° (CCD line camera) • Water-Proof Grade: IP68 • Resolution: 2048 pixels • Maximum scan rate: 18kHz • Detection speed: 1~80km/h (advise 50km/h) • Installation Area: About 1200 x 322 x 290mm • Scan mode: full auto, non-external trigger condition scan mode • Storage temperature；•40°～75° • Operating temperature: -10° ~+60° • Operating power : 110－240V AC,50－60HZ
