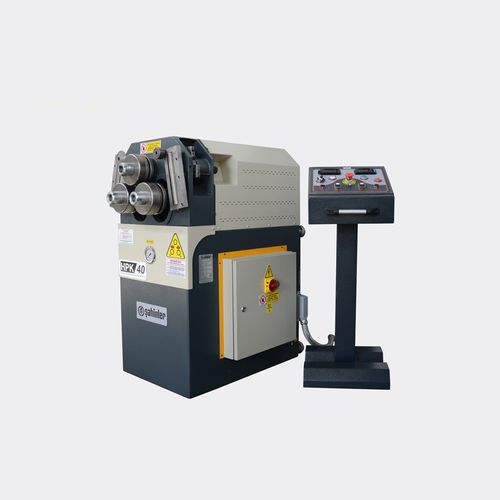

Hydraulic bending machine HPK 40profile3 drive rollershorizontal
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- profile
- Number of rollers
- 3 drive rollers
- Displacement
- horizontal, vertical
- Control
- NC, digital
- Other characteristics
- precision
- Bending capacity
35 mm
(1 in)- Roller diameter
137 mm
(5 in)- Overall length
1,050 mm
(41 in)- Overall width
700 mm
(28 in)- Total height
1,250 mm
(49 in)- Weight
415 kg
(915 lb)- Total power
1.5 kW
(2 hp)
Description
Stable cast steel frame
3 Rolls are motor driven
Special hardened and polished rolls
Horizontal and vertical working position
Lateral side supports
Brake motor equipped for the precision bending
Hardened standard roll-set
Mobile control panel
Two digital read-outs for position of bottom rolls
VIDEO
Catalogs
Other Sahinler Metal Makina End. A.S. products
SECTION AND PIPE BENDING MACHINES
