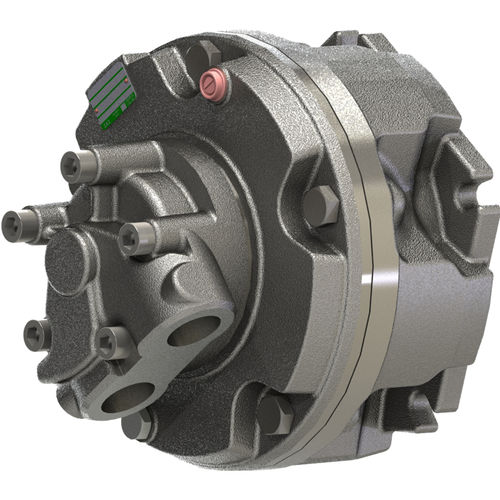

Radial piston hydraulic motor GM1
fixed-displacement

radial piston hydraulic motor
radial piston hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
radial piston
Other characteristics
fixed-displacement
Pressure

Max.: 25,000,000 Pa
(3,626 psi)

Min.: 0 Pa
(0 psi)

Rotational speed

Max.: 1,000 rpm
(6,283.19 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Torque

Max.: 4.9 Nm
(3.61 ft.lb)

Min.: 1.54 Nm
(1.14 ft.lb)

Displacement

Max.: 314 cm³
(10.62 US fl oz)

Min.: 99 cm³
(3.35 US fl oz)

Description

A range of fixed displacement motors with a design resulting from continuous improvement obtained thanks to decades of experience in the field. High mechanical and volumetric efficiency and excellent cavitation resistance make them ideal products for any circuit that requires reliability, high performance and rotation control.

Catalogs

GM1
GM1
5 Pages
GM1 R13
GM1 R13
4 Pages
