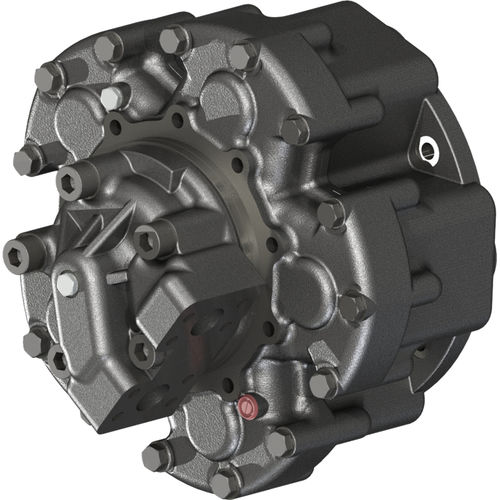

Radial piston hydraulic motor S7B fixed-displacement
Add to favorites
Compare this product
Characteristics
- Technology
- radial piston
- Other characteristics
- fixed-displacement
- Pressure
Max.: 25,000,000 Pa
(3,626 psi)Min.: 0 Pa
(0 psi)- Rotational speed
Max.: 650 rpm
(4,084.07 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Torque
Max.: 68.4 Nm
(50.45 ft.lb)Min.: 21.9 Nm
(16.15 ft.lb)- Displacement
Max.: 4,298 cm³
(145.33 US fl oz)Min.: 1,373 cm³
(46.43 US fl oz)
Description
A series of motors for a range of displacements from 3000 to 6000 cc/rev, which can reach rotation speeds up to 3 times higher than traditional radial piston motors. The high ratio between maximum and minimum speeds, together with excellent efficiency and cavitation resistance make this series ideal for high power density applications where performance and reliability are the main characteristics.
Catalogs
S7B
5 Pages
