Wet screening screener TAURUS

drainagewetfor wastewater treatment

Overview

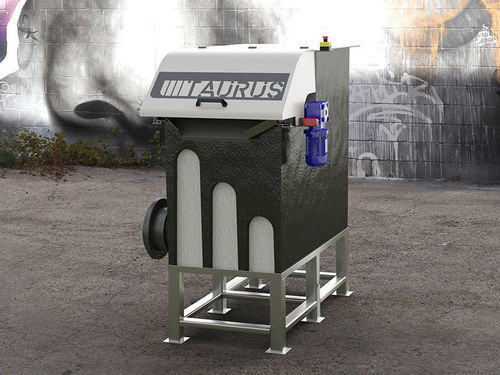

TAURUS is a high-capacity rotary screening unit manufactured by Salher for wastewater pretreatment. It removes suspended solids, protects downstream electromechanical equipment and biological processes, and helps optimize overall purification performance.

Design and construction
TAURUS is constructed in GRP and AISI 316 stainless steel to provide strong corrosion resistance and long service life in aggressive environments. The unit features a compact footprint relative to its handling capacity and includes an elevated support to accommodate a solid waste collection container for improved waste management and easier maintenance.

Filtration and cleaning
The rotary screen incorporates a filtering drum with mesh size options from 0.25 mm to 3 mm for effective solid separation. It integrates a dual cleaning system to ensure continuous operation and to minimize maintenance requirements.

Safety and maintenance features
Standard equipment includes a protective cover for the filtering drum, a mushroom-type emergency stop and an automatic shutdown switch activated when the unit is opened. Maintenance is facilitated by a full drainage outlet with a ball valve for quick draining. The lightweight construction (up to three times lighter than comparable steel units) simplifies installation and transport.

Mobility and integration
The unit is supplied with a stainless steel base that eases movement within the installation and is suitable for integration into urban and industrial wastewater treatment lines as well as into drinking water and water reuse systems.

Applications

• Urban wastewater treatment plants (WWTPs)
• Industrial wastewater treatment
• Drinking water protection
• Water reuse systems

Features / technical specifications

• Model name: TAURUS
• Manufacturer: Salher
• Construction materials: GRP and AISI 316 stainless steel
• High solid separation capacity; suitable for high flow rates
• Mesh sizes available: 0.25 mm to 3 mm
• Dual cleaning system
• Protective cover for filtering drum
• Emergency stop (mushroom-type) and door-open shutdown switch
• Full drainage outlet with ball valve
• Elevated support for solid waste collection container
• Lightweight design — up to 3× lighter than conventional steel units (depending on configuration)
• Stainless steel base for ease of movement
