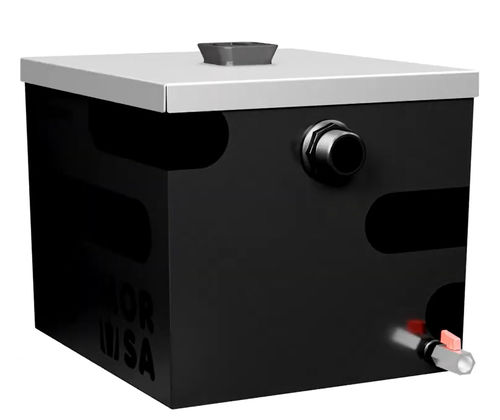

Grease separator Morsa

gravityfor the food industryfor wastewater treatment

Description Morsa is a unit designed and manufactured by Salher for the separation and recovery of oils, greases and coarse solids from kitchen wastewater in a manual, fast and simple way. It is suitable for companies in the hospitality and catering sector and for industrial kitchens; easy to install and operate.

Video The following video shows the assembly of this unit and the components that make it up.

Features of Morsa

• Morsa is a compact unit that enables direct recovery of grease from water.
• Manufactured according to EN 1825 with PRFV resin (fibreglass-reinforced polyester).
• Equipped with a fully removable coarse solids retention basket made of AISI 304 stainless steel.
• Easy handling and maintenance.
• Simple and quick installation.
• Includes a ball valve fitted on the drain connection.

Specification table reference: Morsa 1
flow (L/s): 0.40
width (mm): 385
length (mm): 435
height (mm): 395
volume (L): 58
inlet diameter (inch): 1 ½"
outlet diameter (inch): 1 ½"
number of sinks: 2
meals / day: < 35
packaged dimensions (mm): 500 x 400 x 400

Technical specifications

• Reference: Morsa 1
• Flow: 0.40 L/s
• Dimensions (width x length x height): 385 x 435 x 395 mm
• Volume: 58 L
• Inlet/outlet diameter: 1 ½"
• Number of sinks: 2
• Estimated capacity: < 35 meals/day
• Structure material: PRFV resin (EN 1825 compliance)
• Removable filter basket: AISI 304
• Drain valve: ball valve
• Packaging dimensions: 500 x 400 x 400 mm
