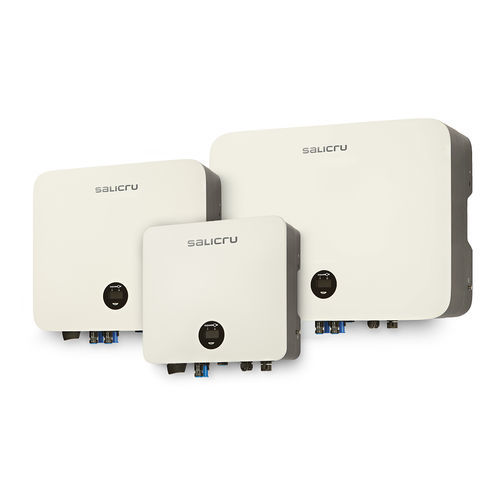

Inverter for solar applications EQUINOX2 S/SX
off-gridpowersingle-phase

inverter for solar applications
inverter for solar applications
inverter for solar applications
inverter for solar applications
inverter for solar applications
Add to favorites
Compare this product


Characteristics

Type
off-grid
Electrical characteristics
power, single-phase
Applications
for solar applications, for home use, for professional applications
Other characteristics
compact, with LCD display, outdoor, with MPPT, indoor
Power

Min.: 2,000 W

Max.: 10,000 W

Output voltage

Min.: 195.5 V

230 V

Max.: 253 V

Voltage

Min.: 0 V

60 V, 80 V, 120 V

Max.: 500 V

Primary current

Min.: 8.7 A

Max.: 43.5 A

Description

The new solar power inverters in Salicru’s EQUINOX2 S/SX series are an excellent option for generating photovoltaic power in homes and commercial premises, allowing users to capture clean, cheap energy from the roof of their building. Their stand out for their compact size, ease of installation and optimal heat dissipation. Internally, the device is equipped with the highest quality components and state-of-the-art technology (SiC). The EQUINOX2 range offers exceptional advantages such as high efficiency and compatibility with any type of roof and panel configuration. The S range includes 2, 3, 4, 5, 6, 8 and 10 kW devices, making them suitable for a wide range of projects. In addition, their wide input voltage range enables different numbers and types of photovoltaic modules to be connected, allowing for a flexible string design. EQUINOX2 S/SX devices can be monitored easily and intuitively via various communication interfaces (WiFi and LAN) using the free EQX-sun App for smartphones and tablets. The high protection afforded by their epoxy-coated die-cast aluminium housing makes them suitable for indoor and outdoor use, and installation is fast and easy due to their compact, lightweight design, ease of grip and well-spaced connections in the lower part of the unit to facilitate operability.
