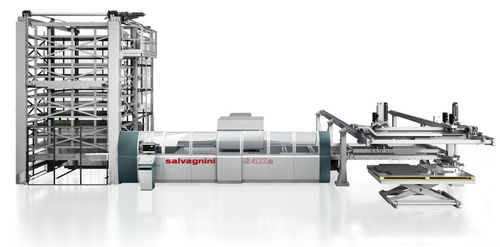

Shearing punching center S4Xe series

CNCservo-drivenfor metal

Overview
The S4Xe punching‑shearing center is an integrated sheet‑metal work center that automates loading, punching, forming, separation and unloading to deliver continuous, repeatable production for industrial applications while minimising manual handling and scrap.

Key features

• Multi‑press head with die structure accommodating up to 96 tools; each tool individually actuated and permanently available to avoid in‑cycle changeovers.
• Integrated shear with two independent 500 mm blades arranged orthogonally and fitted with blankholders for cuts of any length while preserving alignment.
• Manipulator with 3030 mm stroke enabling processing of sheets up to 3048 mm without regrip; patented hand‑over system adapts dynamics to sheet weight.
• Manipulator with 9 independently opening pincers to enable nesting and machining without holding scrap.
• Adaptive controls for centring, manipulator dynamics, thermal expansion compensation and automatic shear clearance/force adjustment.

Process efficiency
The S4Xe performs feeding, punching, forming, separation and unloading within a single automated flow to maximise masked time operations and maintain continuous downstream feeding without intermediate manual handling.

Automation & modularity
The machine supports modular automation modules to increase autonomy and takt:

• PD – automatic pack destacker for feeding from packs.
• MD – single‑sheet store tower (6–15 trays) for JIT and batch‑one supply.
• MV – multi‑tower tray store for mixed feeding from packs or single sheets.
• IA – automatic table stacker for outfeed stacking.
• MCU – dual Cartesian manipulator device for automatic part picking and stacking.

Software & Industry 4.0
Integrated software suite (FACE HMI, STREAM / STREAMPUNCH, OPS, LINKS) enables programming, nest optimisation, production management and IoT monitoring for ERP/MRP interfacing and real‑time performance analysis.

Benefits

• Increased productivity by eliminating in‑cycle tool changes and maximising masked‑time operations.
• Flexible operation for large batches, kit production or single‑piece runs without frequent retooling.
• Reduced scrap through optimised nesting, 9‑pincer manipulator and integrated shear.
• Consistent part quality via precise punch‑die alignment, shear cutting and thermal compensation.

Technical data

• Model: S4Xe.30 / S4Xe.40
• Maximum sheet dimensions (mm): 3048 x 1650 / 4064 x 1650
• Maximum sheet diagonal (mm): 3466 / 4386
• Minimum sheet dimensions (mm): 370 x 300
• Max speed X / Y (m/min): 132 / 96 — simultaneous axes: 163
• Max acceleration X / Y (m/s²): 30 / 15
• Manipulator stroke: 3030 mm (process up to 3048 mm without regrip)
• Multi‑press tools: up to 96 (5 head configurations)

Material machining capacities (indicative)

• Aluminum (UTS 265 N/mm²): punching / shearing up to 5.0 mm
• Steel (UTS 410 N/mm²): punching / shearing up to 3.5 mm
• Stainless steel (UTS 610 N/mm²): punching / shearing up to 2.0 mm
• Minimum material thickness: 0.5 mm
