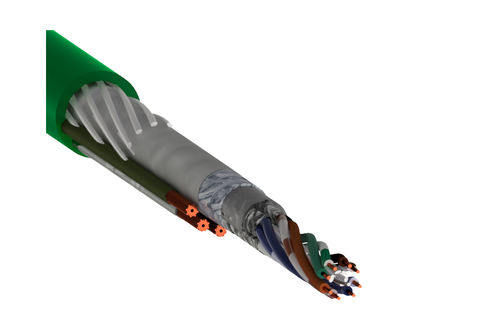

Data electrical cable SKDP03-T

Ethernetgigabit Ethernetoil-resistant

The cable SKDP03-T is a system cable for connecting digital camera systems with additional power requirement and was particularly developed to be used in hazardous areas. It meets the requirements for cables and wires according to DIN EN 60079-14. When using the applicable cable gland, it is possible to insert the cable directly into flameproof enclosures. The SKDP03-T is a high speed cable for Industrial Ethernet for fixed installations in dry, wet, or damp rooms. The cable meets the transmission characteristics for Category 6 of IEC 61156-5 Ed. 2 and it has an excellent resistance against mechanical stress, oils as well as greases and is halogenfree. Features. > Meets the requirements for cables in hazardous areas in accordance to IEC/EN 60079-14 Chapter 9.3. > Meets the requirements for cables in hazardous areas to avoid inter-zone gas-transfer in accordance to IEC/EN 60079-14 Appendix E. > Sunlight resistant in accordance to UL 2556 Sec. 4.2.8.5 (720 h). > Flame retardant in accordance to IEC 60332-1-2. > Oil resistant in accordance to IEC 60811-2-1 (IRM 902, 4 h bei 70°C). > Mud resistant in accordance to NEK 606. > Tested for the standards: IEEE 802.3: Ethernet 10Base-T; Fast Ethernet 100Base-T; Gigabit Ethernet 1000Base-T @ 95 m. > Tested for IEEE 802.3at. PoE+, max. 30 W per channel, max. 95 m. > Constructed with an additional power channel: Square: 3 x 1.5 mm², Color code: BK-BU-GN/YE. Application areas: IEEE 802.3 : Ethernet 10Base-T ; Fast Ethernet 100Base-T ; Gigabit Ethernet 1000Base-T ; 10GBase-T IEEE 802.5 : 16 MB; ISDN ; FDDI ; ATM ; Cable sharing IEEE 802.3at : PoE suitable
