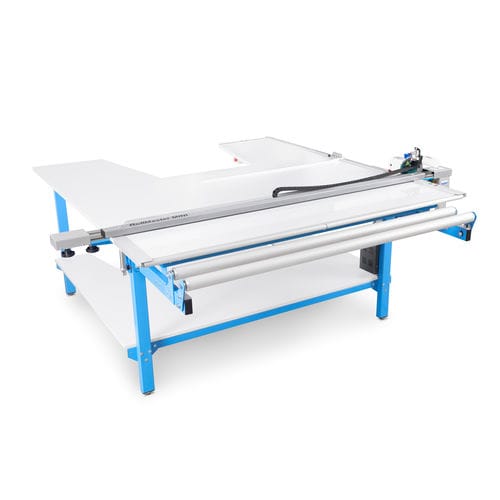

Fabric cutting table RollMaster Mini

rotary-knifecut-to-lengthfor cutting rooms

RollMaster Mini is a specialised table for cutting material from the roll to format.

Its compact design and dual-sided access make it perfect for handling small cutting sizes.

PRODUCT BENEFITS

• Cuts materials at up to 1 m/s in automated versions
• Intuitive control panel with width settings and cut counter
• Dual control sets allow for efficient operation from both the front and back of the table
• Ergonomic operator recess can be closed to create a full-surface work area
• Pneumatic holding bar ensures firm fabric pressure via button or foot pedal
• Safety system includes blade covers, a start lock, and emergency stop
• Modular design supports several configurations with extra add-ons

VERSIONS

• Standard — high-speed manual cutter
• Super — high-speed automatic cutter (5 mm cutting height)
• Super Plus — low-speed automatic cutter (25 mm cutting height)

TECHNICAL DATA

• Table width: 1600 mm (other on request)
• Table length: 1400 mm (other on request)
• Table height: 870–900 mm, adjustable
• Cutting head: manual or automatic
• Blade speed: Standard and Super – 12000 rpm (optionally adjustable); Super Plus – 800 rpm
• Cutting speed (Super and Super Plus): 1 m/s (optionally adjustable)
• Cutting height capacity: Standard and Super – 5 mm; Super Plus – 25 mm
• Cutting precision: 1 mm
• Power: 130-600 W (depends on version)
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles, bolted design
• Anodised aluminium tubes and elements
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Cutter rotational speed adjustment in Standard and Super versions
• Cutting speed adjustment and smooth start in Super and Super Plus versions
• LED backlight module to check the material for defects
• Movable strip for measuring the cutting length
• Laser for measuring the cutting length
• Various unwinders for unrolling materials
