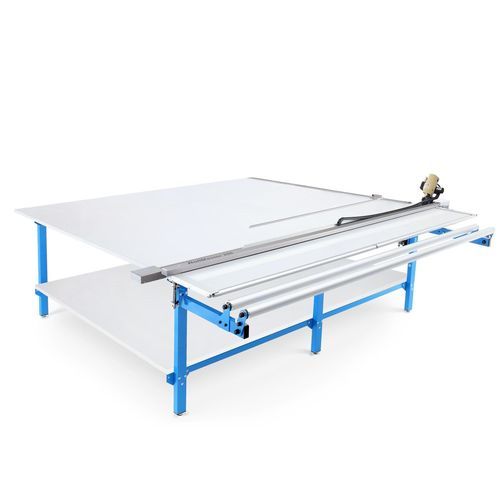

Rotary blade cutting machine RollMaster Super Plus

for PVCfor foamfor polyester

RollMaster Super Plus is a specialised cutting table for cutting thick and layered materials from the rolls into formats.

The low-speed cutting head works best with quilting materials, insulation, filters, foams, felt, wadding, upholstery, leather, and other thick fabrics.

PRODUCT BENEFITS

• Automatic cutter cuts materials at 1 m/s
• Intuitive control panel with width settings and cut counter
• Pneumatic holding bar ensures firm fabric pressure via button or foot pedal
• Optional dual pneumatic bar can compress 100 mm thick materials for cutting
• Integrated scale strip provides a reliable reference for accurate alignment
• Safety system includes blade covers, a start lock, and emergency stop
• Modular design supports several configurations with extra add-ons

TECHNICAL DATA

• Table width: 2500–3200 mm (other on request)
• Table length: 2000–5000 mm length (other on request)
• Table height: 870–900 mm, adjustable
• Cutting head: 100 mm circular blade
• Blade speed: 800 rpm
• Cutting height capacity: 25 mm
• Cutting speed: 1 m/s (optionally adjustable)
• Cutting precision: 1 mm
• Power: 250–650 W (depends on options)
• Voltage: 230 V

CONSTRUCTION

• Powder-coated steel profiles, bolted design
• Anodised aluminium tubes and elements
• 25 mm table top with 2 mm PVC edging

OPTIONAL EQUIPMENT

• Dual pneumatic holding bar for compressing thick materials
• Cutting speed adjustment with smooth start
• LED backlight module to check the material for defects
• Movable strip for measuring the cutting length
• Laser for measuring the cutting length
• Various unwinders for unrolling materials
• Bottom shelves for storage
• Spare parts kit
