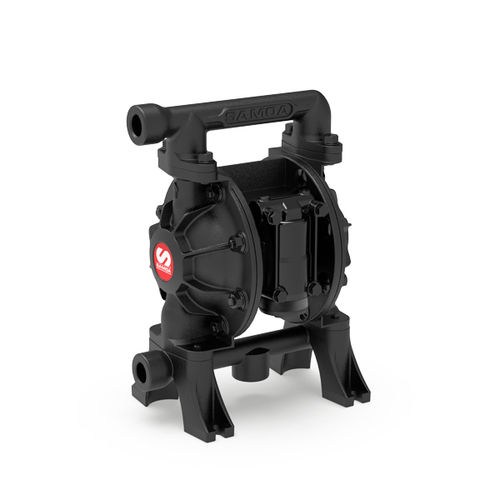

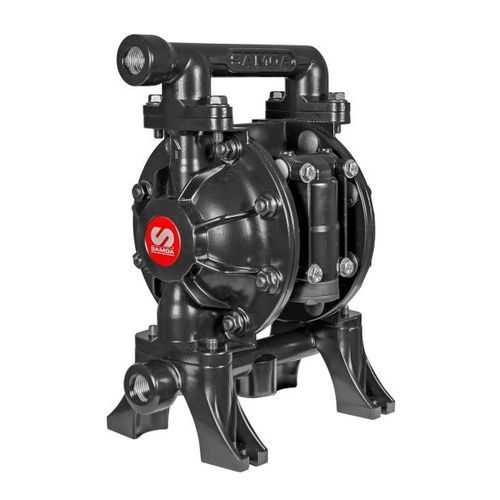

Double-diaphragm pump UP05 1/2"waterfor chemicalsslurry
Add to favorites
Compare this product
Characteristics
- Fluid
- water, for chemicals, slurry, for lubricants, fuel
- Operation
- air-driven
- Priming
- self-priming, submersible
- Technology
- double-diaphragm
- Mobility
- stationary
- Domain
- for water treatment, industrial, for the chemical industry, for the petrochemical industry, for the mining industry, for the metallurgical industry, for maritime applications, for the paper industry, for the steel industry, for the cosmetics industry, for the construction industry, for public works, for foundry applications, for the printing industry, for the glass industry, for the textile industry
- Applications
- filling, transfer, for lubrication systems, process, circulation, sanitation, recycling, for hazardous locations, surface treatment, distribution, sewage, drain, recovery, cleaning, drainage, for lubrication, recirculation, for printing machines, unloading, chemical process, IBC, refueling, level control, for low-pressure applications, suction, high-volume, for harsh environments
- Material
- aluminum
- Fluid specification
- for abrasive fluids, for aggressive media, for solids-laden fluids, for low-viscosity fluids, for corrosive fluids, dye, for powders, cutting fluid, for fluids with lubricating properties, for engine oil, for mineral oil, for AdBlue, for flammable fluids, for brine, for toxic fluids, for used oil, pressure powered, flavouring, for firefighting foam, for refrigerant fluids, for paper stock, coagulant
- Protection level
- abrasion-resistant, submersible, ATEX, robust
- Other characteristics
- high-efficiency, compact, horizontal mount, double-acting, small, high-performance, flange, seal-less, low-vibration, skid-mounted, corrosion-proof, low-noise, high-reliability, oil-free, adjustable-flow, OEM, mobile, rugged, heavy-duty, high-capacity, for fluids, high-flow, rugged
- Flow
56 l/min
(14.79363 us gal/min)- Pressure
Min.: 1.5 bar
(21.756 psi)Max.: 8 bar
(116.03 psi)- Head
8 m
(26'02" )- Input diameter
13 mm
(0.512 in)- Output diameter
13 mm
(0.512 in)- Length
161 mm
(6 in)- Width
250 mm
(9.84 in)- Height
278 mm
(10.94 in)- Weight
3.9 kg
(8.6 lb)
Description
PIVOT Series 1/2” Aluminium Air-operated double diaphragm (AODD), are available in an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility.
These pumps are suitable for general applications with presence of abrasive elements.
UP05 ½” Aluminium AODD pump makes the difference through:
• Exclusive Frictionless PIVOT-SHAFT Air Valve that results in:
o Bigger flow delivery.
o Smooth operation.
o Reduced flow pulsations.
o No pump vibration.
o No stall.
o Low-pressure start up.
o No icing.
o Easy and fast service.
• Lateral fluid inlet and outlet ports avoid leaking directly onto the pump.
• Universal standards:
o Matches relative dimensions of main competitive brands, allowing easy swap-over.
o Allow for easy swapping and upgrading of your old pumps.
Metallic structure:
• Superior abrasion resistance.
• Very robust design for longer operation lifetime to clamped pumps.
• Optimized design for maximum performance.
• Premium materials for a long and reliable life
ATEX certified.
Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.
