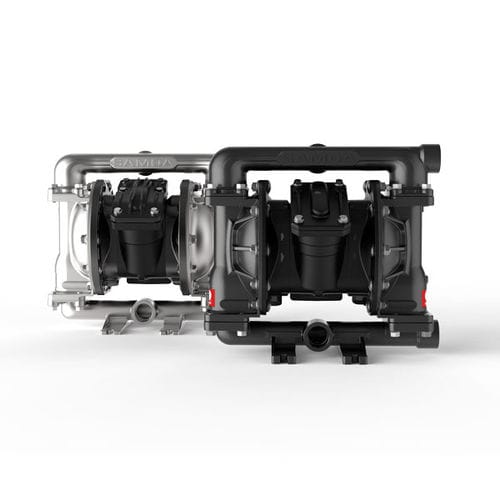

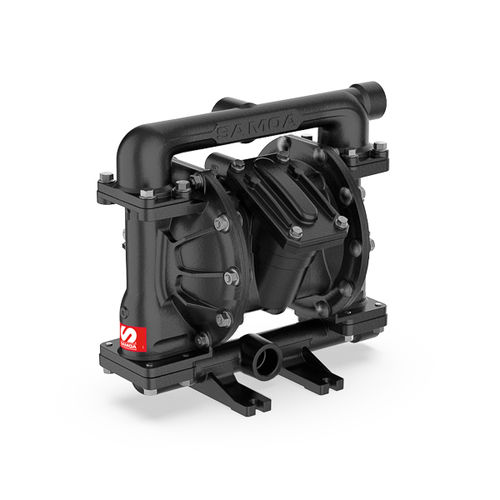

Double-diaphragm pump UP10
slurryfuelwater

Double-diaphragm pump - UP10 - SAMOA Industrial, S.A. - slurry / fuel / water
Double-diaphragm pump - UP10 - SAMOA Industrial, S.A. - slurry / fuel / water
Double-diaphragm pump - UP10 - SAMOA Industrial, S.A. - slurry / fuel / water - image - 2
Double-diaphragm pump - UP10 - SAMOA Industrial, S.A. - slurry / fuel / water - image - 3
Double-diaphragm pump - UP10 - SAMOA Industrial, S.A. - slurry / fuel / water - image - 4
Double-diaphragm pump - UP10 - SAMOA Industrial, S.A. - slurry / fuel / water - image - 5
Add to favorites
Compare this product
Go to the SAMOA Industrial, S.A. website for more information

Characteristics

Technology
double-diaphragm
Fluid
water, for chemicals, slurry, lubricating oil, fuel, for powders
Operation
pneumatic
Priming
self-priming, submersible
Mobility
stationary
Domain
for the metallurgical industry, industrial, for the steel industry, for the chemical industry, for water treatment, for the petrochemical industry, for the mining industry, for foundry applications, for the cosmetics industry, for the paper industry, for the printing industry, for renewable energy, for public works, for the textile industry, for maritime applications, for the glass industry, for the construction industry
Applications
process, suction, transfer, volumetric dispensing, for printing machines, recycling, circulation, sewage, cleaning, unloading, level control, surface treatment, distribution, for harsh environments, drain, IBC, for hazardous locations, drainage, sanitation, recirculation, high-volume, refueling, dewatering, for harsh environments, lubrication, chemical process, for low-pressure applications, recovery
Material
stainless steel, aluminum, metal
Fluid specification
for low-viscosity fluids, for aggressive media, for hazardous fluids, for corrosive fluids, for firefighting foam, for brine, coagulant, for abrasive fluids, for solids-laden fluids, cutting fluid, flavouring, for paper stock, for mineral oil, for flammable fluids, for fluids with lubricating properties, for used oil, for toxic fluids, dye, for refrigerant fluids, for engine oil, for AdBlue
Protection level
rugged, abrasion-resistant, immersible, corrosion-resistant, ATEX
Other characteristics
compact, high-efficiency, variable-flow, small, horizontal mount, self-adjusting, high-performance, adjustable, flange, OEM, high-capacity, double-acting, heavy-duty, low-noise, slurp, oil-free, skid-mounted, four-ball, seal-less, high-flow, for fluids, mobile, high-reliability, low-vibration
Flow

210 l/min
(55.47613 us gal/min)

Pressure

Min.: 1.5 bar
(21.756 psi)

Max.: 7 bar
(101.526 psi)

Head

Min.: 5 m
(16'04" )

Max.: 8 m
(26'02" )

Input diameter

1 in

Output diameter

1 in

Length

209 mm
(8 in)

Height

348 mm
(13.7 in)

Description

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions. UP10 pump makes the difference through: · HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption. · INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragm lifes. · MAXIMUM VERSATILITY. Metal pumps and a wide range of diaphragms, seats and balls offer broad fluid and application compatibility. · EASY SERVICING. Simplified maintenance and cleaning. Components designed for long life and reliability. This model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C).
