Double-diaphragm pump UP05 1/2"
waterfor chemicalsslurry

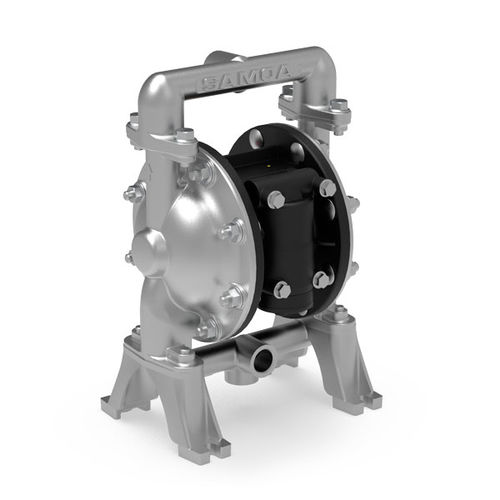

Double-diaphragm pump - UP05 1/2" - SAMOA Industrial, S.A. - water / for chemicals / slurry
Double-diaphragm pump - UP05 1/2" - SAMOA Industrial, S.A. - water / for chemicals / slurry
Double-diaphragm pump - UP05 1/2" - SAMOA Industrial, S.A. - water / for chemicals / slurry - image - 2
Double-diaphragm pump - UP05 1/2" - SAMOA Industrial, S.A. - water / for chemicals / slurry - image - 3
Double-diaphragm pump - UP05 1/2" - SAMOA Industrial, S.A. - water / for chemicals / slurry - image - 4
Add to favorites
Compare this product
Go to the SAMOA Industrial, S.A. website for more information

Characteristics

Technology
double-diaphragm
Fluid
water, for chemicals, slurry, for lubricants, fuel, for powders
Operation
pneumatic
Priming
self-priming, submersible
Mobility
stationary
Domain
for water treatment, industrial, for the chemical industry, for the petrochemical industry, for the mining industry, for the metallurgical industry, for the paper industry, for renewable energy, for the cosmetics industry, for the construction industry, for the printing industry, for the textile industry, for the steel industry, for foundry applications, for maritime applications, for public works, for the glass industry
Applications
process, transfer, circulation, distribution, for low-pressure applications, sanitation, sewage, drain, surface treatment, filling, unloading, IBC, cleaning, for hazardous locations, level control, for lubrication systems, lubrication, recirculation, for printing machines, dewatering, high-volume, refueling, suction, for harsh environments, drainage, chemical process, recovery, for harsh environments
Material
stainless steel, metal
Fluid specification
for mineral oil, for solids-laden fluids, for aggressive media, coagulant, for abrasive fluids, for firefighting foam, for paper stock, pressure powered, for low-viscosity fluids, flavouring, cutting fluid, for flammable fluids, for toxic fluids, for engine oil, dye, for fluids with lubricating properties, for brine
Protection level
abrasion-resistant, ATEX, corrosion-resistant
Other characteristics
high-efficiency, horizontal mount, adjustable-flow, low-vibration, skid-mounted, small, mobile, for fluids, high-performance, flange, low-noise, heavy-duty, double-acting, self-adjusting, OEM, high-flow, oil-free, four-ball, variable-flow, seal-less, high-capacity
Flow

54 l/min
(14.26529 us gal/min)

Pressure

Max.: 8 bar
(116.03 psi)

Min.: 1.5 bar
(21.756 psi)

Head

5 m
(16'04" )

Input diameter

1 in

Output diameter

1 in

Length

162 mm
(6 in)

Width

193 mm
(7.6 in)

Height

295 mm
(11.61 in)

Weight

6.5 kg
(14.33 lb)

Description

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions. UP05 Metallic pumps make the difference through: · HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption. · INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragms life. · MAXIMUM VERSATILITY. Aluminium and Stainless Steel pumps with a wide range of diaphragms, seats and balls options offer broad fluid and application compatibility. Highly suitable for outdoors and general applications with presence of abrasives. · EASY SERVICING. Simplified maintenance and cleaning. The pump is held together by carriage bolts and nuts allowing to accomplish a much faster tear down and rebuild. · COMPACT DESING. Ready to meet any OEM application needs. · CONNECTIVITY. Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.
