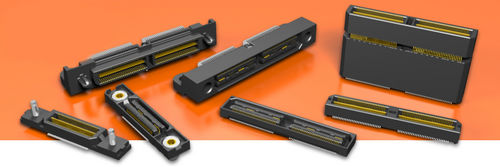

Data connector Q Strip® series mezzanineboard-to-boardIDE
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- mezzanine, board-to-board, IDE, SMT
- Shape
- rectangular
- Other characteristics
- high-speed
- Pitch
0.5 mm, 0.635 mm, 0.8 mm
(0.02 in, 0.025 in, 0.031 in)- Data rate
28 GB/s
Description
The Q Strip® connectors have surface mount signal contacts as well as a surface mount ground plane between the two rows of signals for improved electrical performance. Mated sets of the Q Strip® connectors are available in 8 different stack heights from 5 mm (.197") to 30 mm (1.180"). Options include guide posts for blind mate scenarios as well as alignment pins and locking clips for proper connector placement before reflow.
FEATURES
Performance: Up to 14.0 GHz /28 Gbps
Integral ground/power plane
Connector to connector retention options
Vertical, perpendicular, and coplanar applications
Contacts: Up to 180 I/Os
Stack height: 5.00 mm - 25.00 mm
VIDEO
