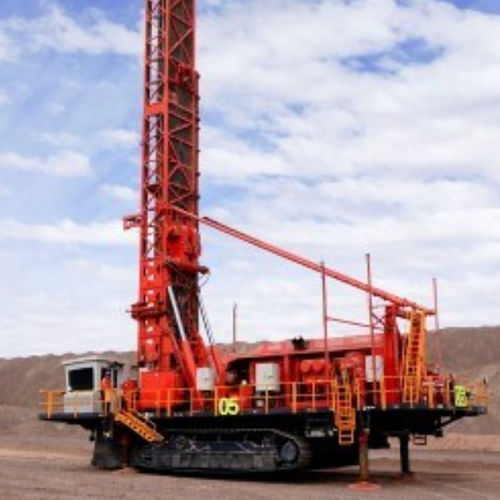

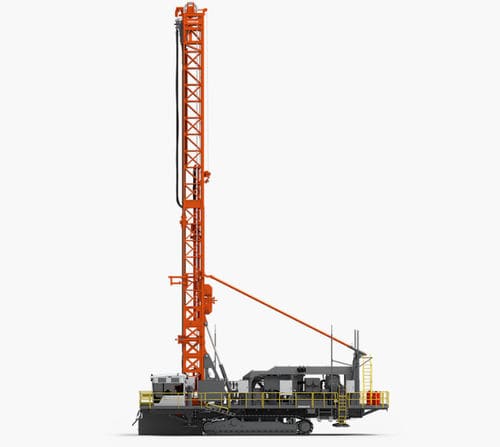

Continuous flight auger (CFA) drilling rig DR416i
blastholecrawlerautonomous

continuous flight auger (CFA) drilling rig
continuous flight auger (CFA) drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
continuous flight auger (CFA)
Applications
blasthole
Mobility
crawler, autonomous
Drilling unit
rotary
Other characteristics
for quarries
Drilling diameter

Min.: 270 mm (11 in)

Max.: 406 mm (16 in)

Drilling depth

42.4 m (139'01")

Machine weight

195,707 kg (431,460.1 lb)

Motor power

1,118 kW (1,520.06 hp)

Hydraulic working pressure

6 MPa

Description

Sandvik DR416i blasthole drill delivers a single-pass capacity of 21m (69ft), the longest single-pass mast in its class along with a maximum depth of 42.4 m (139 ft) across all recommended pipe diameters. Intended for large-diameter rotary drilling, (270–406 mm/105/8–16 in) Sandvik DR416i combines power and intelligence, taking the guesswork out of daily operation and delivering a reliable high-yielding production environment. Bigger. Smarter. Stronger. Sandvik DR416i is AutoMine® ready providing functionality for both on-board and off-board automated needs. This scalable solution, from on-board automation that increases drilling efficiency to full autonomous operation, is designed to meet customer needs both now and in the future. Advantages Sandvik Intelligent Control System Architecture (SICA) provides the operator with real-time feedback regarding the machine’s performance and health, along with tools for drill planning, reporting and analysis, improving availability and productivity Onboard automated features such as Auto Drill and Auto Cycle ensure consistency hole-to-hole while Auto Mast and Auto Level functions ensure consistent operations and reduce wear on structural weldments Patented deck wrench allows bit change in conjunction with optional remote-control crane, eliminates manual bit handling enhancing operator safety Traveling centralizer reduces drill pipe wobble, producing straighter holes, extending component life, reducing unplanned maintenance
