Core drilling drilling rig COMMANDO™ DC120
multifunctionself-propelledwheeled

core drilling drilling rig
core drilling drilling rig
Add to favorites
Compare this product


Characteristics

Drilling type
core drilling
Applications
multifunction
Mobility
self-propelled, wheeled
Drilling unit
tophammer
Engine model
Caterpillar
Other characteristics
hydraulic, construction
Drilling diameter

Max.: 45 mm
(2 in)

Min.: 22 mm
(1 in)

Rope diameter

19 mm, 22 mm, 25 mm
(1 in, 1 in, 1 in)

Machine weight

2,710 kg
(5,974.5 lb)

Motor power

37 kW
(50.31 hp)

Overall length (when moving)

5 m
(16'04" )

Overall width (when moving)

2 m
(6'06" )

Overall height (when moving)

2 m
(6'06" )

Description

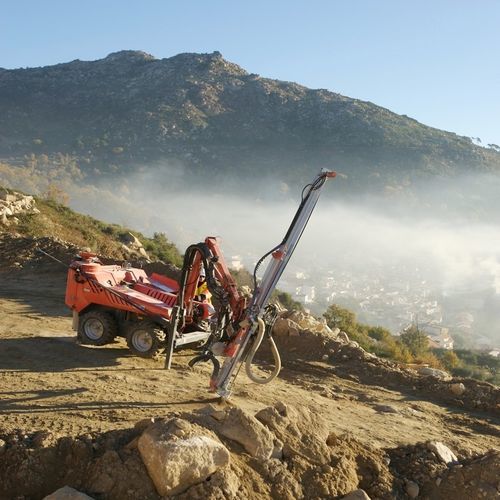

Commando™ DC120 is a hydraulic, self-propelled drilling unit, built on a four-wheel drive carrier. It is suited to operating in challenging conditions and tight spaces, due to its excellent maneuverability. Extreme maneuvering in challenging terrain The four-wheel drive carrier provides enhanced mobility and stability across different conditions. It also produces reduced noise and dust, making it useful in urban areas. Adds flexibility for more applications This rig is versatile, making it ideal for several applications including foundation drilling, road cutting, trenching, bolting, line drilling in dimensional stone quarries and specialized drilling. Compact size Thanks to its compact size, Commando™ DC120 is mobile, well-balanced and lightweight, making transportation a breeze. Sandvik DC120 is a hydraulic, self-propelled drilling unit on a 4-wheel drive carrier. Typical applications for DC120 are foundation drilling, road cutting, trenching, bolting, line drilling in dimensional stone quarries and other special drilling applications. Therefore DC120 is most often used by construction contractors, mines and quarries, and the municipal sector. Thanks to its versatility DC120 is often included in the equipment fleet of rental houses as well. For all drilling needs - laying foundations, digging trenches, demolitions, slicing roads or drilling stone quarries - the Sandvik DC120, 121R and DC122R models are perfect for the job. They have cutting-edge features like four-wheel drive, hydraulic engines, self-propulsion and easy maneuverability in cramped, rugged terrain.

VIDEO
