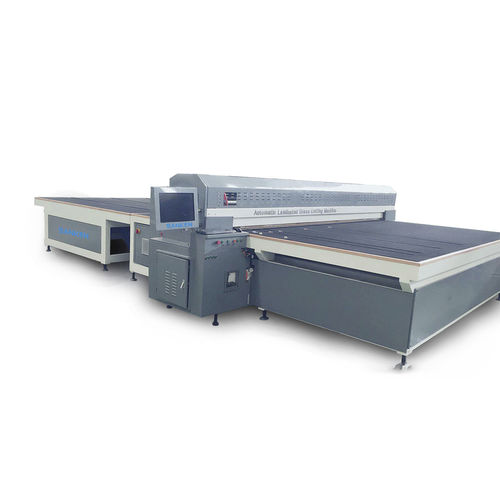

Glass cutting machine SKLC-3725A/2620A

glass cutting machine
glass cutting machine
glass cutting machine
glass cutting machine
glass cutting machine
glass cutting machine
glass cutting machine
Add to favorites
Compare this product


for glass
Other characteristics
automatic, precision
X travel

Min.: 400 mm (16 in)

Max.: 2,440 mm (96 in)

Y travel

Min.: 400 mm (16 in)

Max.: 3,660 mm (144 in)


Machine introduction SANKEN automatic laminated glass cutting machine can be used to cut EVA laminated glass and PVB laminated glass. The equipment has high safety, good stability, easy operation and high cutting precision. The equipment is welded with international standard steel and has a perfect surface treatment. The key positions are annealed and milled to ensure the overall stability and strength of the equipment. The bridge frame is the center of the cutting system, including the upper and lower cutting heads, the upper fixture and the far infrared cutting of the film. The far-infrared heating temperature, heating time, cutting and breaking pressure can be adjustable. Laminated glass can be automatically broken by the machine after cutting, don't need manual breaking. Specifications Model: SKLC-3725A Max.glass size: 2440*3660mm Min.glass size: 400*400mm Glass thickness: 3+***+3mm~8+***+8mm Installation power: 15KW Machine weight: 3000KG Dimension (L*W*H): 5500*4400*1300mm
