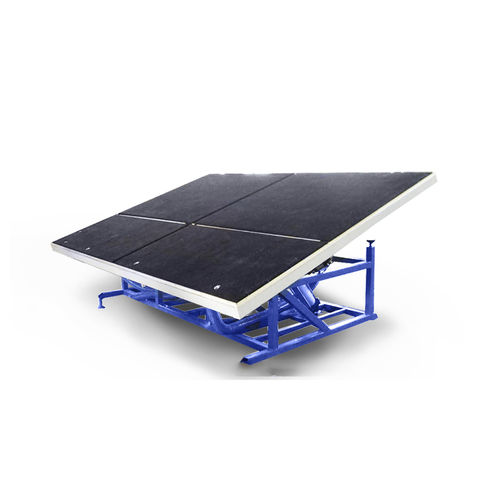

Tilting table SKTT-3725

Machine introduction SANKEN flip-type glass loading and breaking table can be tilted 0-90 degrees by pneumatic and hydraulic. The table can move up and down smoothly, which is convenient for loading and unloading glass. The table is equipped with air-float system to reduce the resistance when the glass moves. The edge of the countertop is equipped with a protective bar to support the glass. After the operator finishes cutting glass on the table, he can control the X-axis and Y-axis glass slicing rods on the table by foot pedal to break the glass. The equipment is safe and reliable, reasonable structure, convenient operation, low failure rate. Specifications Model: SKTT-3725 Max.glass size: 2440mm*3660mm Air pressure: 0.4~0.6MPA Installation power: 1.5KW Dimension(L*W*H): 3900*2500*1000mm Weight: 600KG
