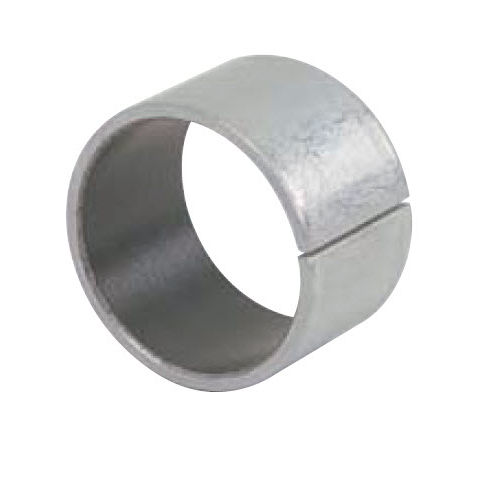

Open plain bearing LBM series
bronzesteelsintered bronze

open plain bearing
open plain bearing
open plain bearing
open plain bearing
Add to favorites
Compare this product


bronze, steel, sintered bronze, PTFE
Other characteristics
self-lubricating, lead-free
Inside diameter

Min.: 3 mm
(0.12 in)

Max.: 160 mm
(6.3 in)


Min.: 3 mm
(0.12 in)

Max.: 100 mm
(3.94 in)


It is the bearing which has sintered porosity of bronze powder on the steel back plate, with improved self-lubrication and weer resistance by adding potytetraftuoro-ethylene (PTFE). which has small friction coefficient, and special filler through impregnation. - Lead-free bearing which can be used without lubrication. - Excellent sliding performance under high load and impact load. - Excellent in weer resistance and long life. - Suitable for sliding motion and continued motion Stick-slip hardly occurs. Saent operation can be achieved. Precautions for use * Do not grind the bushing inner surface or the outer diameter to change the size. * Polish the surface of the mating surface to the value better than 3 ¢ mRmax. * Offset the joint of the bushing as far as possible from the maximum load point. * To press fit the bushing, press fit it vertically into the housing. * Special lock is not required for Drystar. * Mnitial lubrication can make the product life longer.
