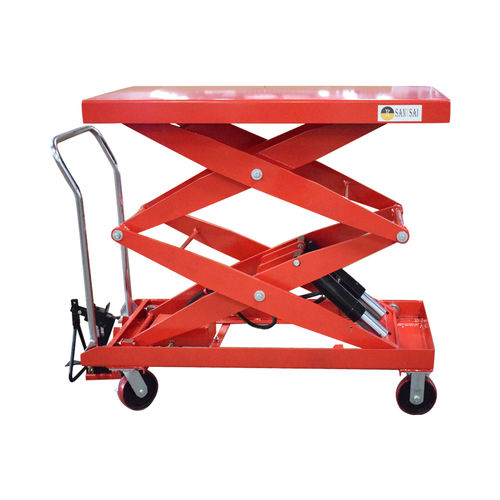

Double-scissor lift table SS_TF100SD
foot-operatedmobilefor order picking

double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
double-scissor lift table
Add to favorites
Compare this product


Characteristics

Technology
double-scissor
Operation
foot-operated
Type
mobile
Other characteristics
for order picking, for die handling
Capacity

1,000 kg
(2,204.6 lb)

Lowered height

50 cm
(20 in)

Lifting height

170 cm
(67 in)

Tray length

120 cm
(47.24 in)

Tray width

61 cm
(24.02 in)

Weight

232 kg
(511.47 lb)

Description

1. 2200 lbs loading capacity 2. Lifting height (min/max): 20" - 67" 3. Table size: 47" length 24" width 4. Foot pump, manual push,easy-release lever to lower 5. PU wheels, two rigid and two swivel with brake 6. Overload valve protects pump and operator Ideal for Many Applications The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting. Reliable & Stable Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas. Safety & Comfort Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with mini pain and strain.
