Column type lift table MT2436

mechanicalmobilestationary

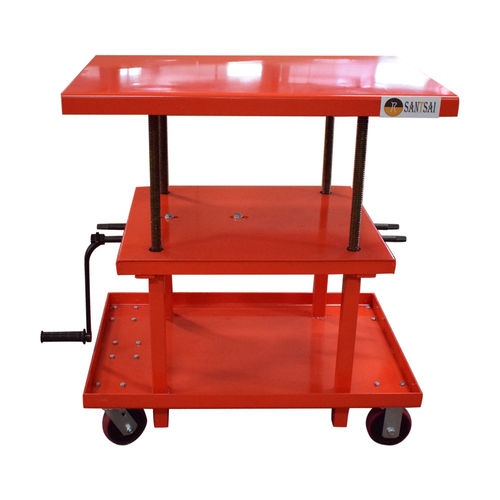

Post Hydraulic Lift Table 2200 LBS Max. Height 42 Inch 1. 2200 lbs loading capacity 2. Lifting height (min/max): 24" - 42" 3. Table size: 36" length 24" width 4. manual push 5. Easy-release lever to lower 6. 5" dia PU wheels, two rigid and two swivel with brake Technical Details Model - 　 - SS_MT2436 Capacity - - 2200 lbs - 1000 kgs Min. Height - h13 - 24" - 61 cm Max.Height - h12 - 42" - 107 cm Table Dimensions - a/b - 36" x 24" - 91.5x61 cm Wheel (PU) - - Φ 5" - 12.5 cm Truck weight - - 233 lbs - 106 kgs Gross Weight - - 240 lbs - 109 kgs Carton Size - - 37" x 25" x 23" - 95x63x57 cm Ideal for Many Applications The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting. Reliable & Stable Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas. Safety & Comfort Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with minimum pain and strain.
