Fitting plastic injection mold

for the plastics industryfor the construction industry

Product overview
Pipe fitting mold solution for elbows, tees, couplings and other plumbing fittings. The tooling supports production of elbows, tees, couplings, adapters and similar plastic parts used in water supply, drainage and infrastructure. The mold is engineered to manage material flow, compensate shrinkage, ensure surface quality, and maintain thread/socket dimensional accuracy and stable demolding across different fitting geometries.

Solution matching
SANTSAi can match pipe fitting molds with suitable injection molding machine capacity, core-pulling mechanisms, cooling circuits, mold handling equipment and auxiliary systems. This coordination helps manufacturers plan a complete injection molding setup for consistent production and reduced cycle variability.

Mold gallery

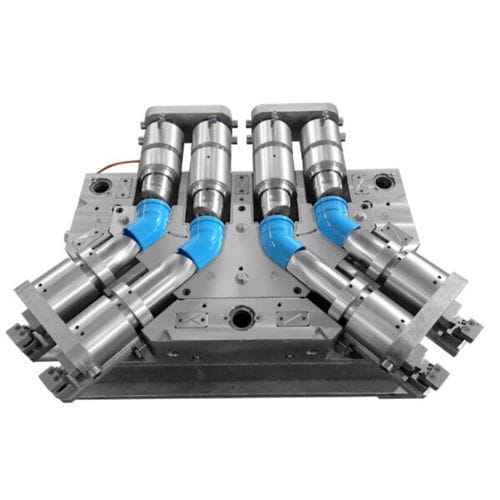

• Clean white-background main image showing mold components
• Additional white-sample main image illustrating sample molded fittings

Technical characteristics / specifications

• Brand: SANTSAi
• SKU: SANTSAI-MOLD-PIPE-FITTING
• Commercial name / Model: Pipe Fitting Mold
• Category: Mold & Tooling
• Tags: pipe fitting mold; plastic pipe fitting mold; plumbing mold; PVC fitting mold
• Key considerations: material flow management, expected shrinkage compensation, surface finish quality, thread/socket dimensional accuracy, stable demolding strategies
• Associated systems: injection molding machine capacity matching, core-pulling mechanisms, cooling support, mold handling and auxiliary equipment
