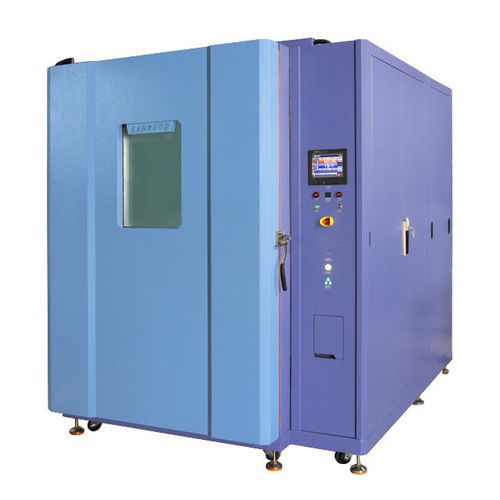

Thermostatic test chamber SMC-2520-CC
climatichumiditytemperature

Thermostatic test chamber - SMC-2520-CC - Sanwood Technology - climatic / humidity / temperature
Thermostatic test chamber - SMC-2520-CC - Sanwood Technology - climatic / humidity / temperature
Thermostatic test chamber - SMC-2520-CC - Sanwood Technology - climatic / humidity / temperature - image - 2
Thermostatic test chamber - SMC-2520-CC - Sanwood Technology - climatic / humidity / temperature - image - 3
Add to favorites
Compare this product

Characteristics

Type
climatic, thermostatic
Controlled parameter
temperature, humidity
Test type
environmental, temperature stability, cooling, condensation, heating
Product applications
for electrical equipment, for battery, for solar panels, device, electronic equipment, for avionics instruments
Application domain
for quality control, for the aeronautical industry, laboratory
Configuration
floor-standing, vertical, mobile
Light source
LED
Protection level
with electronic lock
Number of doors
1-door
Chamber material
stainless steel
Options and accessories
with window, with temperature and climatic control, remote-controlled, touchscreen-controlled, PLC-controlled
Other characteristics
stainless steel, low-temperature, automatic, high-capacity, energy-saving, constant, alternating
Capacity

Max.: 8,000 l
(2,113.38 gal)

Min.: 1,000 l
(264.17 gal)

Temperature

Max.: 180 °C
(356 °F)

Min.: -70 °C
(-94 °F)

Interior length

1,200 mm
(47.24 in)

Interior height

1,500 mm
(59.06 in)

Interior depth

1,400 mm
(55.12 in)

External length

1,400 mm
(55.1 in)

External height

2,000 mm
(78.74 in)

External depth

2,850 mm
(112.2 in)

Description

Focusing on the innovation of Temperature humidity test chamber,Temperature and humidity test chamber,Temperature humidity test chamber,Temperature humidity test chamber,Humidity test chamber The temperature and humidity test chamber is widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat tests of electronic and electrical products, materials, parts, equipment, etc., alternating heat test and constant temperature test, etc. Also could do high and low temperature routine tests, low temperature storage, in order to evaluate the performance of the sample under given environmental conditions. Landing Type Temperature and humidity test chamber simulating product under the condition of temperature and humidity combination (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and humidity and condensation test, etc.), check whether the adaptability and characteristics of the product itself have changed. Need to meet the requirements of international standard (IEC, JIS, GB, MIL...). in order to achieve International quantum measurement procedures consistency (including test steps, conditions, methods). To avoid different cognitive, and reduce uncertainly factors scope of measurement. Six advantages of Sanwood Humidity Chamber: 1.Evaporator no frosting under longtime Low temperature and low humidity running. 2.Automatic control system refrigerant demand save electricity above 30% 3.High heat load tested samples test environment 4.realize 95℃ 95%high temperature and high humidity environment.
