Climate chamber SMC-22-CC
humiditytemperatureenvironmental stress screening

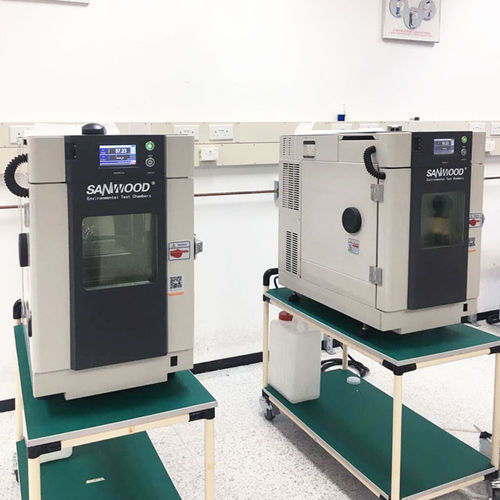

Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening
Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening
Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening - image - 2
Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening - image - 3
Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening - image - 4
Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening - image - 5
Climate chamber - SMC-22-CC - Sanwood Technology - humidity / temperature / environmental stress screening - image - 6
Add to favorites
Compare this product

Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Test type
environmental stress screening, thermal shock, EMC
Product applications
for mobile devices, wireless device, for electronic circuit boards
Application domain
European standards-compliant, international standards-compliant, for small parts production, laboratory
Configuration
compact, benchtop
Light source
LED
Protection level
with electronic lock
Number of doors
1-door
Chamber material
stainless steel
Options and accessories
with window, with temperature and climatic control, touchscreen-controlled, PLC-controlled, remote-controlled
Other characteristics
low-temperature, for high temperatures, automatic, energy-saving
Capacity

22 l
(5.81 gal)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 150 °C
(302 °F)

Interior length

300 mm
(11.81 in)

Interior height

300 mm
(11.81 in)

Interior depth

250 mm
(9.84 in)

External length

480 mm
(18.9 in)

External height

835 mm
(32.87 in)

External depth

990 mm
(38.98 in)

Description

The Bench-top temperature and humidity test chamber It's widely used in scientific research, research institutes, quality inspection institutes and other industries to do warm and humid heat tests of electronic and electrical products, materials, parts, equipment, etc., Are you looking for the smallest chamber possible to get your testing done? Hate the footprint and noise of other temperature chambers? Need to closely integrate other test equipment? SMC-22-CC is perfect for you! Features and advantages: 1. small enough be placed underneath a benchtop, or on top. 2. Designed for integration with other test equipment to make a complete test stand. 3. The smaller models run on standard 115V power, enabling easy installation anywhere. 4. Extremely quiet operation as low as 52 dba, suitable for quiet labs or offices. 5. Design with a space-saving footprint and quiet operation suitable for offices and small labs 6. One 1" diameter cable port on the left and right side 7. One adjustable stainless steel shelf 8. Temperature output terminals 9. Three levels of overheat protection Certifications: ISO9001,CE,any requested certificate of different Cooperated Client: University and testing institution: Tsinghua university Sun Yat-sen university Hongkong University of Science and Technology Chinese Academy of Sciences NTEKT Testing Technology Pony testing Haikou Customs District P.R China TUV SUD ......
