Climatic test chamber SM-150-2P-A
temperaturethermal shockelectronic equipment

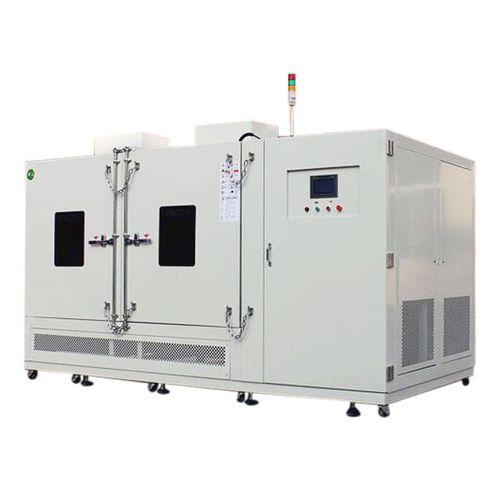

Climatic test chamber - SM-150-2P-A - Sanwood Technology - temperature / thermal shock / electronic equipment

Climatic test chamber - SM-150-2P-A - Sanwood Technology - temperature / thermal shock / electronic equipment

Add to favorites

Compare this product

Go to the Sanwood Technology website for more information

Characteristics

Type

climatic

Controlled parameter

temperature

Test type

thermal shock

Product applications

electronic equipment, for electrical equipment, for vehicles

Application domain

for quality control

Configuration

floor-standing

Light source

LED

Number of doors

2 doors

Chamber material

stainless steel

Options and accessories

with window, 2-zone, touchscreen-controlled, PLC-controlled

Other characteristics

stainless steel, low-temperature, for high temperatures, energy-saving

Capacity

150 l
(39.63 gal)

Temperature

Min.: -55 °C
(-67 °F)

Max.: 150 °C
(302 °F)

Interior length

500 mm
(19.69 in)

Interior height

600 mm
(23.62 in)

Interior depth

500 mm
(19.69 in)

External length

1,250 mm
(49.2 in)

External height

2,530 mm
(99.61 in)

External depth

1,650 mm
(64.96 in)

Description

Model SM-50-2P-ASM-80-2P-ASM-150-2P-ASM-200-2P-ASM-300-2P-ASM-500-2P-A Temperature impact range-55℃～150℃（A:-40℃～150℃;B:-55℃～150℃；) Temperature fluctuation±1.0℃ Low temperature precooling time 25.0℃～-70.0℃ Within 60 mins 1.0～3.0℃/min High temperature preheating time 25.0℃～200.0℃ Within 45 mins 3.0～7.0℃/min Temperature conversion time 3s Temperature recovery time Within 5 mins Within 10 mins Internal materialStainless steel(SUS304) External materialCold rolled steel sheet / powder spraying Heat insulating material100mm thickness polyurethane plate＋10mm thickness mineral wool Fan Centrifugal blower Compressor fully closed or semi-closed semi-closed Condenser Air cooling, water cooling Refrigerant R404A、R23、R508 EvaporatorFin - and - Tube Heat Exchanger HeaterNickel chromium alloy heating wire Interior size(mm) W*H*D350*400*350400*500*400500*600*500650*460*670960*460*670960*650*800 Outer size(mm) W*H*D1100*1930*14601150*2130*15501250*2530*16501400*2250*18501750*2250*18501750*2630*1980 Volume（L)50L80L150L200L300L500L Power supply 380V AC 50/60Hz ControllerSANWOOD SH5600:Equipped with RS232， RS485 port；（7.0 inch controller) USB data export
