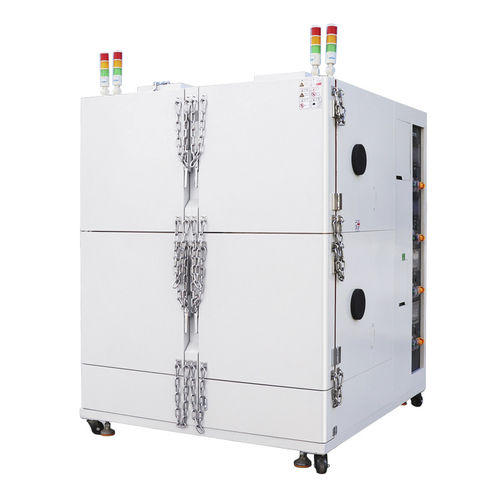

Climate chamber SM-4-125L-250temperaturethermal shockfor avionics instruments
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature
- Test type
- thermal shock
- Product applications
- for vehicles, for semiconductors, for avionics instruments
- Application domain
- for quality control
- Configuration
- floor-standing
- Light source
- LED
- Chamber material
- stainless steel
- Options and accessories
- remote-controlled, touchscreen-controlled, PLC-controlled
- Other characteristics
- stainless steel, low-temperature, for high temperatures, energy-saving
- Capacity
Max.: 250 l
(66.04 gal)Min.: 125 l
(33.02 gal)- Temperature
Max.: 150 °C
(302 °F)Min.: -55 °C
(-67 °F)
Description
Usage：electric component with metal and plastic and other material that used in a closed high temperature indoor environment
Basic characteristics：
Power supply: AC380V 50Hz
Total power: 20kw
Weight: 280kg
Inner box size: D550*W500*H500
Carton size: D1880*W1500*H1900
Number of cabinets: 4
Working environment requirements:
Temperature range: RT+10~250℃
Temperature fluctuation: less than or equal to 2℃
Temperature gradient: 2℃ for less than 200℃, 5℃ for more than 200℃
Temperature overshoot: ±2℃
Temperature deviation: ±1.5~3℃
Heating time: RT~250℃ is less than or equal to 35min
Number of partitions: 2 partitions per box, adjustable position height
Special features：
Add an independent air valve and increase the communication interface with the Hioki data recorder
Add a blast cooling device to speed up the cooling of the inner box after the test
Increase glass window requirements
Increase lighting requirements
Increase the controller requirements, configure 4 touch controllers, each sub-box corresponds to 1 controller
Increase the definition of temperature overshoot, requiring ±2°
Increase heating time error requirements
Increase the door to shoot windows and camera installation services
