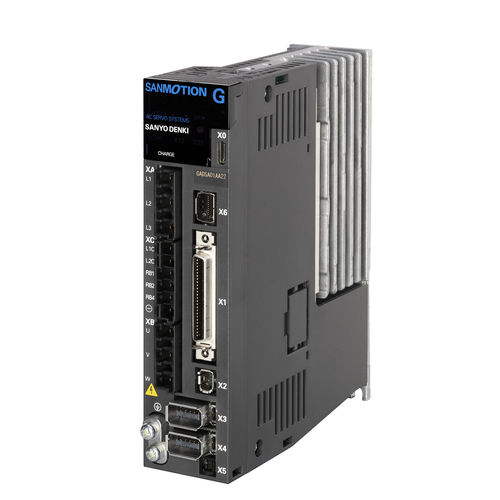

High-performance servo-drive GAE

three-phasesingle-phasedigital

MAIN FEATURES - Powerful Performance - 1. Evolved Servo Performance Speed frequency response: 3.5 kHz Encoder resolution: 27 bit, battery-less 2. Improved Reliability and Maintainability Various safety functions such as STO, monitoring of power supply status and communication quality, estimation of the remaining life of the holding brake, and prevention of electronic component failures. The battery-less encoder eliminates the need for battery replacement, improving the reliability and maintainability of equipment. - Eco- and User-Friendly - 3. Compact, Lightweight, and Energy-saving 4. Easy and User-friendly SPECIFICATIONS - Input voltage: 1 x 200-240VAC 50/60Hz or 3 x 200-240VAC 50/60Hz or 1 x 100-120VAC 50/60Hz Servo drive capacity: 10, 20, 30, 50 Control modes & interfaces: (1) Position: pulse train (2) Velocity: analog +/- 10V (3) Position / Speed / Torque : EtherCAT Applicable motors: GAM Rated power: 30W to 200W for 100V models 30W to 1.5kW for 200V models
