AC servo-drive / 400 V
RS3C

Add to MyDirectIndustry favorites
Compare this product

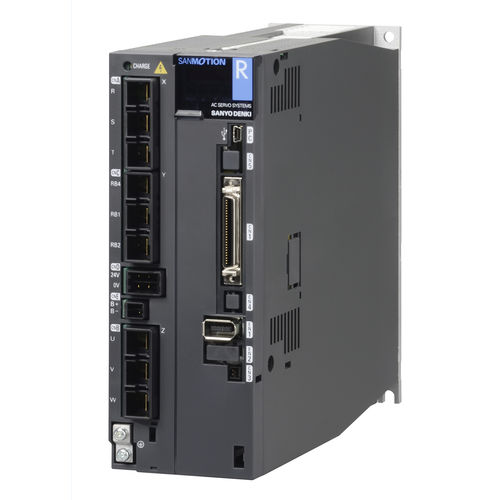

AC servo-drive / 400 V AC servo-drive / 400 V - RS3C
{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Voltage :

    400 V

  • Power:

    Max.: 5,500 W

    Min.: 500 W

Description

Main features:

1) EVOLVED

Tandem operation control

Absolute Linear Encoder
New products are compatible with Heidenhain encoder (EnDat2.2) and this makes possible to use absolute encoder with linear motor system.

Safe Torque Off function


2) ECO-EFFICIENT

Reduced power consumption
Power consumption and standby power have been reduced by a maximum of 15% and 29%, respectively, when compared with our current model.

3) EASY TO USE

Automatic analysis of phase margin and gain margin
Drive recorder: details of motor and amplifier status during malfunctions (alarms) are recorded.
Holding brake control as standard

Specifications :
Input voltage: 3 x 380-480VAC 50/60Hz

Control voltage: 24VDC

Capacity: 25, 50, 100

Rated power: 500W to 5.5kW

Compatible motors: R2C

Options : Safety module, regenerative resistor
