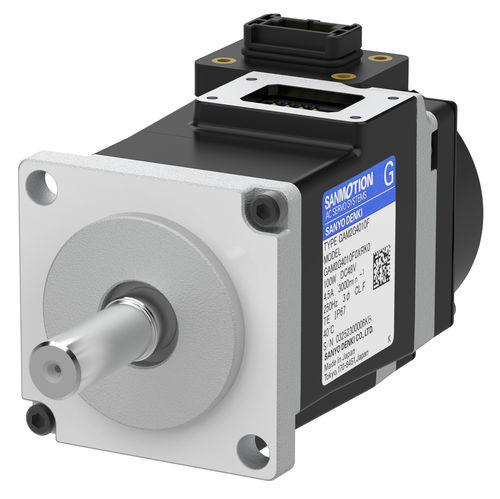

DC servo motor SANMOTION G

48 Vcompactlightweight

1. Evolved Servo Performance High responsiveness and effective vibration suppression enable fast, precise control, enhancing the productivity and processing quality of equipment. compared to our conventional products : • Speed frequency response: 2.2 times higher • Positioning settling time: 8 times shorter • Encoder resolution: 27 bit max. (battery-less) 2. Improved Reliability and Maintainability Various safety functions, such as protection against electronic component failures. The battery-less encoder eliminates the need for battery replacement, improving the reliability and maintainability of equipment. 3. Usable for Various Applications The expanded product lineup now includes 400 W servo motors, an increase from 200 W motors of the conventional products. 4. Usable in Various Environments Vibration resistance of the servo motor and amplifier has been improved two-fold and 20%, respectively, compared to the conventional products. The operating temperature range of the servo amplifier has been extended by 1.5 times, now covering from 0 to +60ºC. Also, the amplifier can be used at a high altitude of 2,000 m above sea level. - Eco- and User-Friendly - 1. Compact, Lightweight, and Energy-saving Design for SDGs Compared to the conventional products,the motor and amplifier have been made lighter by up to 5% and 9%, respectively, and the overall motor length has been shortened by up to 19%. Power loss of the motor and amplifier has been cut by up to 5% and 12.8%, respectively. 2. Easy and User-friendly Both servo motors and servo amplifiers are designed to be mounting-compatible with the conventional products for easy replacement
