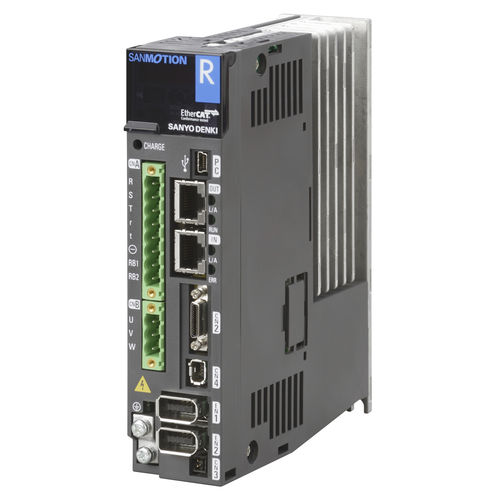

AC servo-drive / digital / 100-200 V / high-performance
RS3 3E

Add to MyDirectIndustry favorites
Compare this product
AC servo-drive / digital / 100-200 V / high-performance AC servo-drive / digital / 100-200 V / high-performance - RS3 3E
{{requestButtons}}

Characteristics

  • AC/DC:

    AC

  • Output signal:

    digital

  • Voltage :

    100-200 V

  • Other characteristics:

    high-performance

  • Power:

    Min.: 30 W

    Max.: 2,000 W

Description

MAIN FEATURES

1) Improved precision and reduced cycle time
- Rapid response 2.2kHz
- Shorter position settling time
- Vibration control
- Faster positioning stabilization

2) Safety function STO Safe Torque Off

3) Easy setup for optimal operation
- High performance auto-tuning
- Improvement of usability
- Setup software

SPECIFICATIONS

- Input voltage:
1 x 200-240VAC 50/60Hz or
3 x 200-240VAC 50/60Hz or
1 x 100-120VAC 50/60Hz or

Servo drive capacity: 10, 20, 25, 30, 50

Rated power:
30W to 200W for 100V models
30W to 2kW for 200V models


Applicable motors: R2, R1, R5

Control modes & interfaces:
(1) Position: pulse train
(2) Velocity: analog +/- 10V
(3) Position / Speed / Torque : EtherCAT

Option : Safety module
