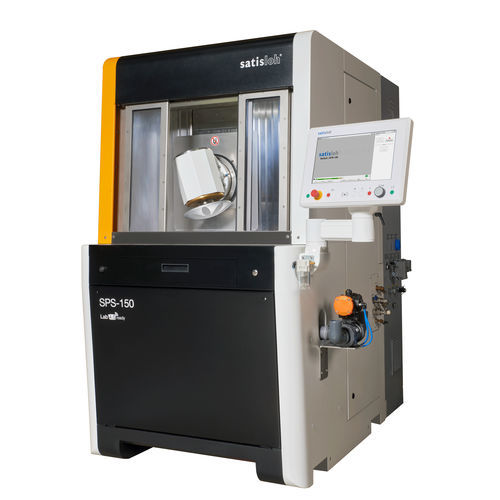

Glass polishing machine SPS-150

opticalindustrialCNC

The SPS-150 combines modern CNC technology with simple operation. It is suitable for the efficient processing of spheres with a diameter of 10 up to 150 mm and impresses with excellent polishing results and outstanding user-friendliness. Efficiency redefined The SPS-150 is the perfect choice for simple and efficient polishing without compromising surface quality. Replacing the proven SPS-125, this polishing machine has an extended working range of Ø 10 up to 150 mm for processing spheres using the Synchrospeed process. As an option, the machine can also be used for polishing rotationally symmetric aspheres. The SPS-150 features “fluid-based polishing”, a polishing process in which the lens is surrounded by a flowing polishing medium and pressed against the tool without contact with the workpiece holder. The polishing fluid provides effective cooling and even distribution of the contact pressure, resulting in increased process stability.  Because the back of the workpiece is also protected by the polishing media, the process also saves time by eliminating the need to apply a protective lacquer. • Powerful 360° tool spindle with 20 Nm at 450 rpm • Fast and intuitive setup with Satisloh BaSyS graphical user interface • Integrated dressing spindle for polishing tools • Process stability and high repeatability due to polymer concrete machine bed with superior damping properties • User-friendly features: automatic door, coated surfaces and rounded corners • Optimized control panel with integrated handwheel • Compact footprint
