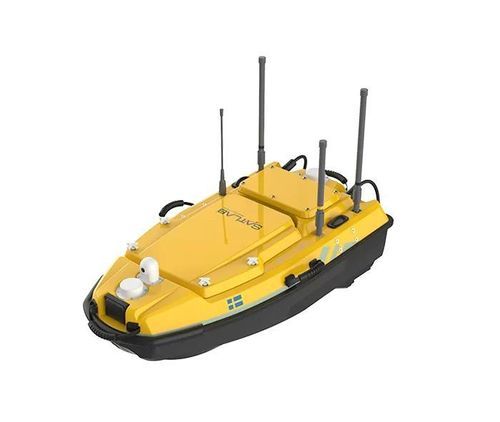

Multi-sensor USV HydroBoat 1200 GEN2

bathymetric monitoringautonomousfor hydrographic surveying

Product overview
The HydroBoat 1200 GEN2 is Satlab’s compact, multi‑functional USV designed for hydrographic and environmental surveys. It integrates with HydroBeam M2 multibeam echosounders, ADCPs, side‑scan sonars and water quality sensors. The platform includes a built‑in single‑beam echosounder, a 1.05 m hull length and hot‑swappable single/dual batteries to support extended mission profiles.

Control system
Smart automatic operation with onboard data storage, GNSS & SBES data fusion and a GNSS+IMU suite for stable positioning. Built‑in 4G modem enables long‑range telemetry and remote supervision.

Software
SLHydro USV Android app for intelligent route planning, automated multi‑type data acquisition (single‑beam, multibeam, ADCP), full safety functions and real‑time camera monitoring.

Hardware
Compact 1050 mm / 29 kg twin‑hull design with IP67 rating. Dual battery option with hot‑swap capability (dual batteries >4 h runtime depending on payload), millimeter‑wave radar obstacle avoidance and anti‑tangle propellers for reliable operations in cluttered waterways.

Payload
Supports up to 40 kg payload; compatible with HydroBeam M2 multibeam echosounder, dual‑frequency echosounders, multi‑beam systems, side‑scan sonar, multi‑brand ADCPs and water quality monitors.

Applications (table)
Rivers

• Riverbed topographic mapping
• Hazardous sections monitoring
• Dredging volume calculation
• Siltation measurement

Lakes

• Underwater terrain mapping
• Reservoir capacity estimation
• Siltation & ecological monitoring

Reservoirs

• Reservoir basin mapping
• Dam safety monitoring
• Siltation measurement

Ports

• Channel and basin sweep surveys
• Dockside depth monitoring
• Underwater obstacle detection

Applications (high‑level list)

• Riverbed topographic mapping
• Underwater terrain mapping
• Hazardous sections monitoring
• Reservoir basin mapping and capacity estimation
• Dredging volume calculation
• Siltation & ecological monitoring
• Channel and basin sweep surveys
• Dam safety monitoring
• Dockside depth monitoring
• Underwater obstacle detection

Technical specifications

• Model: HydroBoat 1200 GEN2
• Length: 1050 mm (1.05 m)
• Weight: approx. 29 kg
• Payload capacity: up to 40 kg
• Built‑in sensor: single‑beam echosounder
• Compatible payloads: HydroBeam M2 multibeam echosounder, dual‑frequency echosounder, multi‑beam systems, side‑scan sonar, ADCPs, water quality sensors
• Navigation & positioning: GNSS + IMU; GNSS & SBES data fusion
• Communications: built‑in 4G module; supports long‑distance 4G connection
• Software: SLHydro USV Android app for automated acquisition and route planning
• Power: hot‑swappable single/dual batteries; dual battery option with >4 hours runtime (dependent on payload)
• Hull & protection: IP67 rated twin‑hull
• Collision avoidance: millimeter‑wave radar
• Propulsion: anti‑tangle propellers
• Onboard features: onboard data storage; full safety functions
