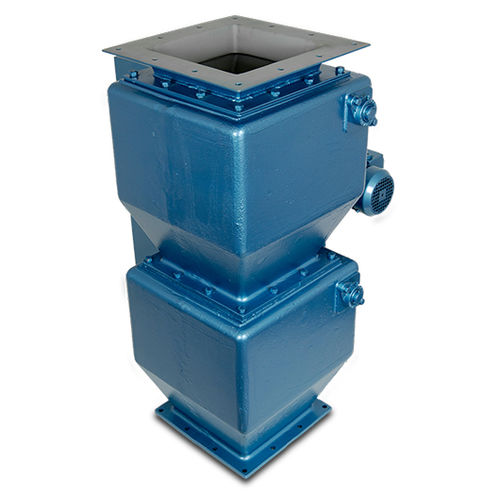

Plug valve
electrically-operatedfor granulatestransfer

plug valve
plug valve
Add to favorites
Compare this product


Characteristics

Type
plug
Operation
electrically-operated
Applications
for granulates
Associated function
transfer
Other characteristics
motor-driven

Description

Suitable for discharge dry dust, powder, granules and fibrous materials from cyclones, filters, hoppers etc., whilst maintaining an effective gas seal. The valve consists of two flaps connected by counterweights or spring loaded spindles, which are operated by means of a motor driven cam. The cam alternately opens each flap allowing materials to pass through the separate chambers in batch form and thereby ensuring a gas seal. After cam release, the counterweights (or springs), return each flap to the upper (sealed) position and are designed and sized so that a clapping action at the flaps is obtained, aiding material flow and preventing build up at the seal plate. The unit is suitable for pressure differentials of up to 500mm W.G. This can be increased with special features. A fabricated steel body caters for sizes and specials that fall outside the standard 150, 200, 250 and 300mm cast iron body range as well as offering stainless steel construction. Optional hardened steel flaps and inlets can help prolong the valve life in particularly arduous or abrasive applications.
