Excavation trench shoring system 260

aluminumlightweight

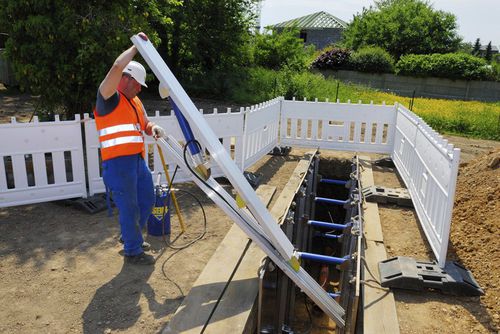

SBH’s Quick Shore Series 260 is specifically intended for shoring depths of up to 2 metres. This system is preferred for laying and repairing house connections, as well as gas and water pipes. As well as construction companies, other users of this practical shoring system are predominantly gardening and landscaping companies, as well as local authority contractors. The aluminium rails which form part of the Quick Shore system are available in lengths of 1.50 and 2.10m. Infinitely adjustable hydraulic struts are mounted between these rails. The struts are available in four different lengths. Depending on rail length and working width, the entire construction weighs between 33 and 40 kg. Due to its extremely light construction, the trench shoring system can be installed by just one person, without the need for an excavator or lifting gear. max. installation depth 2,00 m max. trench width 0,49 - 1,64 m working width 0,45 - 1,60 m strut clearance height (hc) without excavator use 0,56 m
