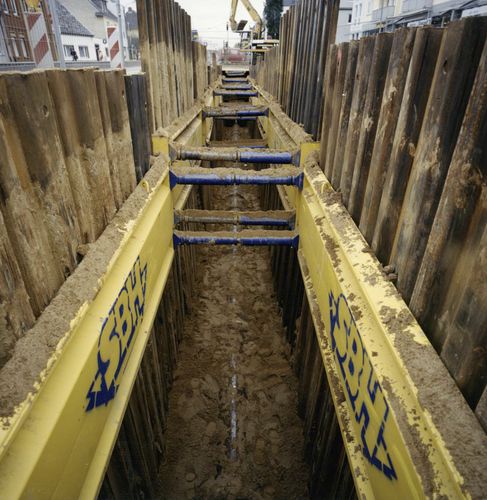

Trench shoring system 400

Pile chamber shoring is the perfect choice where supply lines cross. This system combines shoring plates and trench sheets. The pile chamber is also the guiding frame for the trench sheets, and at the same time serves as the upper support. The excavator can easily press in the trench sheets before excavation takes place. The working width is adjusted by means of SBH spindles and extension pipes. Upon request, pile chamber plates can also be manufactured for other trench sheets. Please contact us. recommended installation depth up to 6,00 m trench width 1,30 - 4,58 m working width between inner plates 0,76 – 4,04 m working width between piles 1,00 – 4,28 m pipe clearance height (hc) max. 2,00 m mobile excavator 9,0 - 13,0 t
