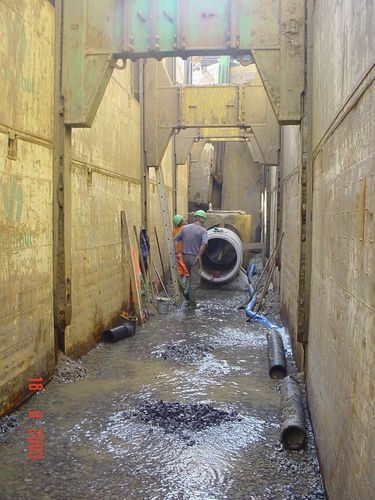

Sliding trench shoring system 750

With this slide rail system, the shoring plates are inserted into two guides. Thanks to the second guide, during removal, there is no need to remove the entire shoring height at once; just the shoring plates in one guide. This double slide rail enables you to use different rolling struts, which enables a wide range of applications. When laying longer pipes, the rolling struts can be arranged so their heights are offset, enabling the pipes to be pitched in. The double slide rails in the 750 series are used for deep trench constructions with high strut clearances and in environments where there is the risk of settling. Using a soil support enables even larger strut clearance heights to be realised, and our clamping device even enables you to realise strut-free trench shoring pits. Pits can be closed all around by using corner slide rails and trench shoring plates. recommended installation depth up to 9,00 m trench width 2,64 - 7,64 m working width: 1,24 - 6,24 m pipe clearance height (hc) up to 3,80 m at DGLS 5,50 m pipe clearance height (hc) up to 4,80 m at DGLS 6,50 m pipe clearance height (hc) up tp 5,10 m at DGLS 7,50 m crawler excavator to depth = 6,20 m 24,0 – 31,0 t crawler excavator to depth > 6,20 m 30,0 – 50,0 t
