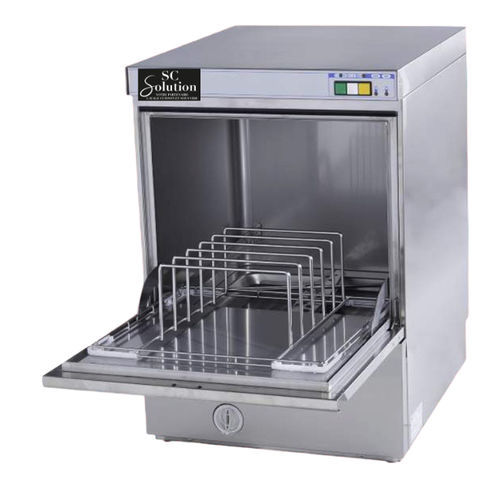

Battery washing machine PA50 ECO

waterautomaticfor the food industry

PA50 ECO
Application
Designed for batteries, utensils and supports (racks, molds, trays…) with a pass-through height up to 600×400 mm.

Features

• Folding door
• Stainless-steel body with Scotch-Brite finish
• Double stainless-steel wash and rinse arms
• Safety micro-switch stops the machine when the door is opened
• Stainless-steel AISI 304 booster heater with insulation
• Electric sheath heating elements with thermostat protection
• Non-return valve for the hydraulic network (EN 61770)
• Pressure-boost pump
• Drain pump
• Automatic overflow impurity evacuation system
• Fully automatic tank draining at end of day (5s pressure trigger, yellow button) with door open
• Fully automatic operation
• Quiet operation: <70dB(A) at 1m
• Ultra-compact dimensions, easily integrated under a table or sink
• Antibacterial rinse at 90°C

PA68 ECO
Application
For batteries, utensils, GN pans, tanks, bread baskets and supports (racks, trays, nets…) with a pass-through height up to 550×800 mm.

Features

• Half sliding / half folding door
• Stainless-steel body with satin finish
• Safety micro-switch stops the machine when the door is opened
• Stainless-steel insulated booster heater
• Electric sheath heating elements with thermostat protection
• 1 stainless-steel wash arm and 1 rinse arm
• Two-level wash water filtration
• Automatic overflow impurity evacuation system
• Fully automatic operation
• High loading capacity
• Antibacterial rinse at 90°C

PA56 ECO
Application
For batteries, utensils, GN pans, tanks and supports (racks, trays, nets…) with a pass-through height up to 500×600 mm.

Features

• Folding door
• Stainless-steel body with satin finish
• Safety micro-switch stops the machine when the door is opened
• Stainless-steel insulated booster heater
• Electric sheath heating elements with thermostat protection
• Non-return valve for the hydraulic network (EN 61770)
• Double stainless-steel wash and rinse arms
• Automatic overflow impurity evacuation system
• Fully automatic operation
• Quiet operation: <70dB(A) at 1m
• Compact, efficient and versatile
• Antibacterial rinse at 90°C

Technical specifications

• Door: folding (PA50, PA56); half sliding & half folding (PA68)
• Body: stainless steel with Scotch-Brite or satin finish
• Wash and rinse arms: double stainless-steel arms (depending on model); 1 wash + 1 rinse arm (PA68)
• Safety micro-switch stops the machine when the door is opened
• Booster heater: stainless steel (AISI 304) with insulation
• Heating: electric sheath elements with thermostat protection
• Non-return valve for the hydraulic network (EN 61770) (present on some models)
• Pressure-boost pump (PA50)
• Drain pump (PA50)
• Automatic overflow impurity evacuation system
• Fully automatic tank draining at end of day (5s pressure trigger, yellow button) (PA50)
• Operation: fully automatic
• Noise level: <70dB(A) at 1m (some models)
• Pass-through capacity / dimensions: up to 600×400 mm (PA50); 500×600 mm (PA56); 550×800 mm (PA68)
• Design: compact, can be recessed under table/sink (PA50); high loading capacity (PA68); compact and versatile (PA56)
• Antibacterial rinse at 90°C
