Disinfection washing tunnel

immersionsprayrinsing

Overview
Washing and disinfection tunnel designed for rinsing and disinfecting in commercial kitchens and healthcare environments. Various models are available to suit specific needs (different lengths, configurations, and options for containers, utensils, flexible molds, etc.).

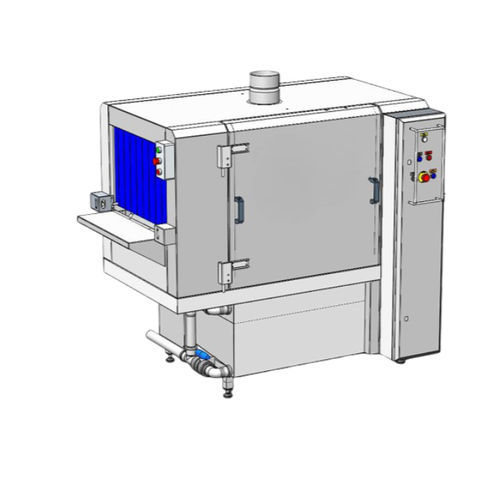

Rinsing and Disinfection Tunnel (TR1500)
Application
For rinsing and disinfection in commercial kitchens and healthcare environments.

Features
Length: 1500 mm
Satin-finish stainless steel body
Stainless steel conveyor system
Safety microswitch stops the machine when the door is opened
Volumetric dispenser for disinfectant
Fully automatic operation
Quiet: Ultra-compact dimensions
Various configurations available (infeed/outfeed tables and flow direction)

Washing and Rinsing Tunnel 2700 (T2700)
Application
For GN containers, utensils, racks, crates, plastic containers, and laboratory equipment.

Features
Length: 1900 mm
Satin-finish stainless steel body
Safety microswitch stops the machine when the door is opened
Stainless steel booster heater
Heating via shielded electric elements
5.5 kW stainless steel wash pump
Detergent dispenser controlled by conductivity measurement
Automatic overflow-based debris removal system
Stainless steel belt or stainless steel chain version
Fully automatic operation
Quiet: Compact, high-performance, and versatile
Antibacterial rinse at 90°C

Washing and Rinsing Tunnel 1900 (T1900)
Application
For GN containers, utensils, racks, crates, plastic containers, and laboratory equipment. Specifications
Length: 1900 mm
Satin-finish stainless steel body
Safety microswitch stops the machine when the door is opened
Stainless steel booster heater
Heating via shielded electric elements
2.2 kW stainless steel wash pump
Detergent dosing controlled by conductivity measurement
Automatic overflow-based debris removal system
Available with stainless steel belt or stainless steel chain conveyor
Fully automatic operation
Quiet: Compact, high-performance, and versatile
Antibacterial rinse at 90°C

Washing tunnel for flexible molds (MS)
Usage
Ideal for flexible molds. Also suitable for baking mats, baking trays, and racks.
For trays/mats up to 600×800 mm. Features
Variable-power all-stainless steel pump
Satin-finish 18/10 stainless steel body
Safety microswitch stops the machine when the door is opened
Stainless steel booster heater
Heating via sheathed immersion heaters
1 hinged door providing access to the filter, nozzles, and spray bars
Conductivity-controlled detergent dosing pump
2-stage wash water filtration
Automatic overflow-based impurity discharge system
Adjustable legs
Reduced water consumption: 8 L/min
Specially developed for cleaning flexible molds
Automatic flexible mold holding system
Versatility
Antibacterial rinse at 90°C

Technical characteristics / specifications
Available lengths: 1500, 1900, 2700 (depending on version)
Stainless steel body (including 18/10 stainless steel for flexible mold version) with satin finish
Stainless steel pumps (variable power: e.g., 2.2 kW and 5.5 kW depending on model)
Heating: sheathed electric heating elements or sheathed immersion heaters
Stainless steel booster heater
Dosing units: volumetric for disinfectant and conductivity-controlled for detergent
Filtration system: 2 stages (on flexible mold version) and automatic overflow-based impurity discharge
Conveying: stainless steel belt or stainless steel chain (depending on version)
Safety: safety microswitch stops the machine when the door is opened
Fully automatic operation
Noise level: below 70 dB(A) at 1 m
Antibacterial rinse at 90°C
Reduced water consumption for certain versions: 8 L/min
Options and configurations: various inlet/outlet configurations, tables, flow direction, adjustable legs
