Manipulator with electronic control Liftronic® Pro

electricwith orbital end effectorpositioning

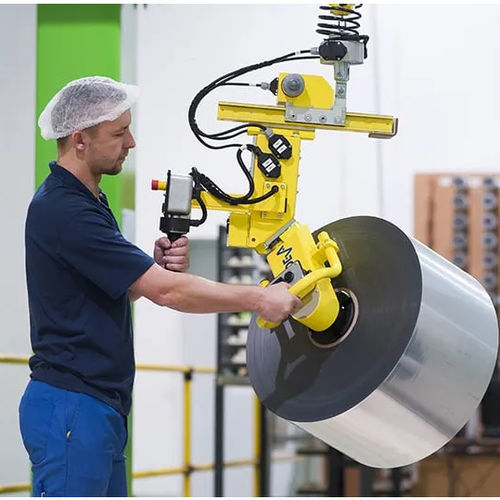

The INDEVA® orbital head for the Liftronic® manipulator is an advanced solution for handling loads such as coils, cylinders and other similar objects. Thanks to its innovative design, this head allows the gripped load to be rotated quickly and effortlessly, offering precise and safe handling. The manipulator can be equipped with a standard or customised orbital head that can manually rotate up to 90° to suit different applications. One of the main features of the INDEVA® orbital head is the presence of a device for automatic weight balancing and centre of gravity adjustment. This allows a perfect balancing condition to be maintained at all times, whether the load is present or not, avoiding problems even with variations in weight or reel length. The automatic balancing system makes handling smoother and safer, reducing manual intervention to a minimum. The orbital head is available in two versions: a light version with a capacity of up to 90 kg, and a heavy version with a capacity of up to 160 kg. Both versions offer several top support variants, including fixed connections with customisable heights and motorised centre of gravity balancing. Gripping systems include powered grippers for reels and variable loads, ensuring flexibility and reliability in every lifting operation. The INDEVA® orbital head is therefore an ideal choice for fast, precise and safe lifting and handling operations, particularly in coil processing and other industrial applications.
