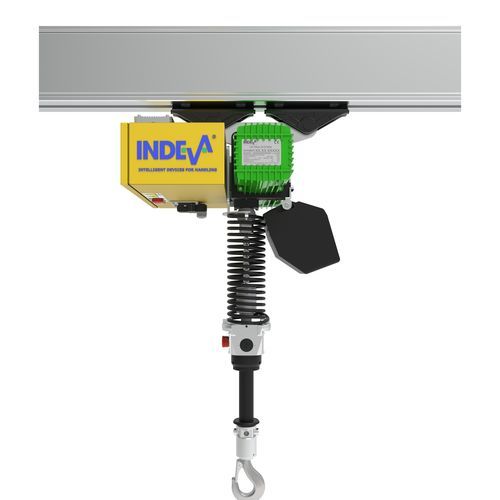

Mechanical chain hoist IH500

manualelectric

Scaglia Indeva presents the INDEVA HOIST, available in the IH500 and IH1000 models, a new generation of hoists designed to increase ease of use, operational safety, and productivity compared to traditional systems. Both versions stand out for their advanced ergonomics and intuitive sensitive handle, which allows automatic speed variation without the use of buttons for lifting and lowering movements. INDEVA HOIST is also the only hoist on the market that can be equipped with both the sensitive handle and an optional remote control, offering extremely versatile control.
The compact and lightweight head design ensures excellent visibility of the work area and superior maneuverability, while the standard swivel joint makes load rotation easier. Automatic speed variation ensures more precise positioning and smoother handling compared to conventional hoists.
The IH500 model supports loads of up to 500 kg, with a power consumption of 1 kW and a weight of 47 kg, making it ideal for operations requiring agility and efficiency. The IH1000 model, on the other hand, offers a load capacity of up to 1000 kg, a power consumption of 2 kW, and a weight of 83 kg, ensuring robustness and high performance for more demanding applications.
Both models are powered at 380/400/415 VAC, 50 Hz (3 phases PE N) with a 24 V control voltage. The FEM 9.511 – 2m – ISO 4301-1 M5 classification and IP54 protection rating confirm the reliability and safety of the entire range, while a noise level below 70 dB contributes to a more comfortable working environment.
Maintenance is simplified by status indicators located on the power supply box, which signal any emergencies and facilitate technical interventions.
To complete the range, INDEVA Hoist offers several options to customize the hoist according to specific operational needs:

• Remote handle with sensitive grip: includes a remote handle equipped with a sensitive grip and stop and reset controls. It enables intuitive control of speed and movement without pressing buttons for lifting and lowering.
• Remote handle without sensitive grip: provides stop, reset, lift, and lower commands, offering basic load control without the sensitive function.
• Under-hook controls: integrated directly on the customer’s hook, including a sensitive handle and stop and reset buttons. This solution allows the hoist to be controlled directly from the gripping point, increasing flexibility and ease of use.

Thanks to these options, each application can be configured with the most appropriate level of control and safety, ensuring optimal performance in any operational context.
